882 M Grip Top
882 M Grip Top
Series: 821-882-8257
Basic Features
Pitch : 38.1 mm
Thickness: 4.8 mm
Surface Type: GT – Grip Top
Functionality: Side Flex MAGNETIC
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty

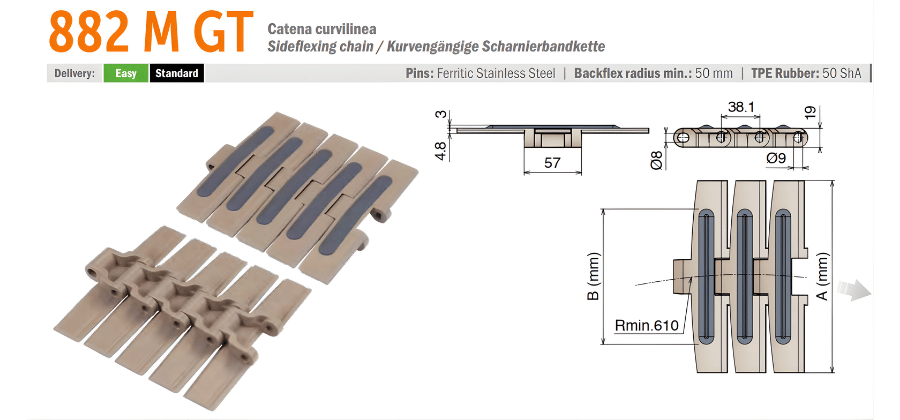

Technical Specifications:
| Product code | Product name | Material | Rmin | Pin material | Part | Max working load | Mass |
| P11150107 | LF 822M GT K 750 – 190,5 mm | LF | 610 | Ferritic Stainless Steel | P1115 | 3830 N | 2.1 kg/m |
| P11150108 | LF 822M GT K1000 – 254,0 mm | LF | 610 | Ferritic Stainless Steel | P1115 | 3830 N | 2.45 kg/m |
| P11150109 | LF 822M GT K1200 – 304,8 mm | LF | 610 | Ferritic Stainless Steel | P1115 | 3830 N | 2.74 kg/m |
Material Specifications::
| Material | LF – Low friction acetal | MX – Performance PBT |
| Color | Black | |
| Temp. range dry: | -40÷80 °C | -40÷120 °C |
| Temp. range wet: | -40÷65 °C | -40÷60 °C |
| FDA approve | Yes | Yes |
