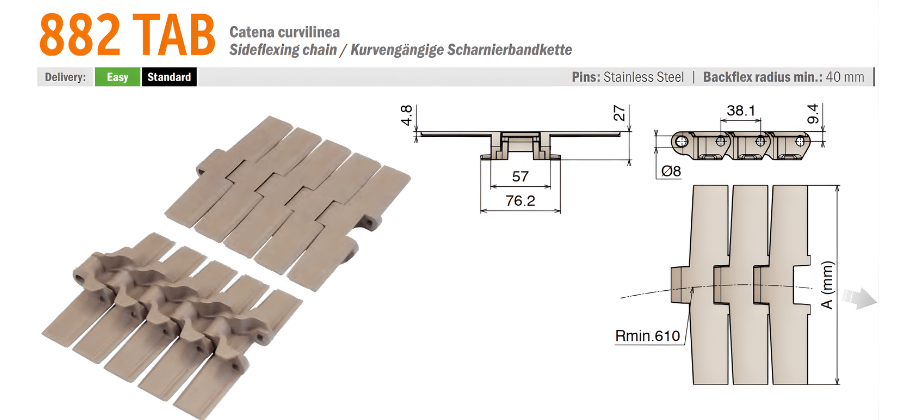

882 TAB Flat Top
882 TAB Flat Top
Series: 821-882-8257
Basic Features
Pitch : 38.1 mm
Thickness: 4.8 mm
Surface Type: FT – Flat Top
Functionality: Side Flex TAB
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Technical Specifications:
| Product code | Product name | Material | Rmin | Pin material | Part | Max working load | Mass |
| P11140105 | LF 882 TAB FT K 450 – 114,3 mm | LF | 610 | Stainless steel | P1114 | 3830 N | 2.05 kg/m |
| P11140106 | LF 882 TAB FT K 600 – 152,4 mm | LF | 610 | Stainless steel | P1114 | 3830 N | 2.2 kg/m |
| P11140107 | LF 882 TAB FT K 750 – 190,5 mm | LF | 610 | Stainless steel | P1114 | 3830 N | 2.45 kg/m |
| P11140108 | LF 882 TAB FT K1000 – 254,0 mm | LF | 610 | Stainless steel | P1114 | 3830 N | 2.85 kg/m |
| P11140109 | LF 882 TAB FT K1200 – 304,8 mm | LF | 610 | Stainless steel | P1114 | 3830 N | 3.4 kg/m |
| P11140305 | MX 882 TAB FT K 450 – 114,3 mm | MX | 610 | Stainless steel | P1114 | 3050 N | 2.05 kg/m |
| P11140306 | MX 882 TAB FT K 600 – 152,4 mm | MX | 610 | Stainless steel | P1114 | 3050 N | 2.2 kg/m |
| P11140307 | MX 882 TAB FT K 750 – 190,5 mm | MX | 610 | Stainless steel | P1114 | 3050 N | 2.45 kg/m |
| P11140308 | MX 882 TAB FT K1000 – 254,0 mm | MX | 610 | Stainless steel | P1114 | 3050 N | 2.85 kg/m |
| P11140309 | MX 882 TAB FT K1200 – 304,8 mm | MX | 610 | Stainless steel | P1114 | 3050 N | 3.4 kg/m |
| P11141705 | MWX 882 TAB FT K 450 – 114,3 mm | MWX | 610 | Stainless steel | P1114 | 3830 N | 2.05 kg/m |
| P11141706 | MWX 882 TAB FT K 600 – 152,4 mm | MWX | 610 | Stainless steel | P1114 | 3830 N | 2.2 kg/m |
| P11141707 | MWX 882 TAB FT K 750 – 190,5 mm | MWX | 610 | Stainless steel | P1114 | 3830 N | 2.45 kg/m |
| P11141708 | MWX 882 TAB FT K1000 – 254,0 mm | MWX | 610 | Stainless steel | P1114 | 3830 N | 2.85 kg/m |
| P11141709 | MWX 882 TAB FT K1200 – 304,8 mm | MWX | 610 | Stainless steel | P1114 | 3830 N | 3.4 kg/m |
| P11142505 | MPX 882 TAB FT K 450 – 114,3 mm | MPX | 610 | Stainless steel | P1114 | 3830 N | 2.05 kg/m |
| P11142506 | MPX 882 TAB FT K 600 – 152,4 mm | MPX | 610 | Stainless steel | P1114 | 3830 N | 2.2 kg/m |
| P11142507 | MPX 882 TAB FT K 750 – 190,5 mm | MPX | 610 | Stainless steel | P1114 | 3830 N | 2.45 kg/m |
| P11142508 | MPX 882 TAB FT K1000 – 254,0 mm | MPX | 610 | Stainless steel | P1114 | 3830 N | 2.85 kg/m |
| P11142509 | MPX 882 TAB FT K1200 – 304,8 mm | MPX | 610 | Stainless steel | P1114 | 3830 N | 3.4 kg/m |
Material Specifications:
| Material | LF – Low friction acetal | MX – Performance PBT | MPX – Lubricated acetal | MWX – Polyamid Composite |
| Color | Black | Grey | Black | |
| Temp. range dry: | -40÷80 °C | -40÷120 °C | -40÷80 °C | -40÷104 °C |
| Temp. range wet: | -40÷65 °C | -40÷60 °C | -40÷65 °C | NO |
| FDA approve | Yes | Yes | YES | – |
