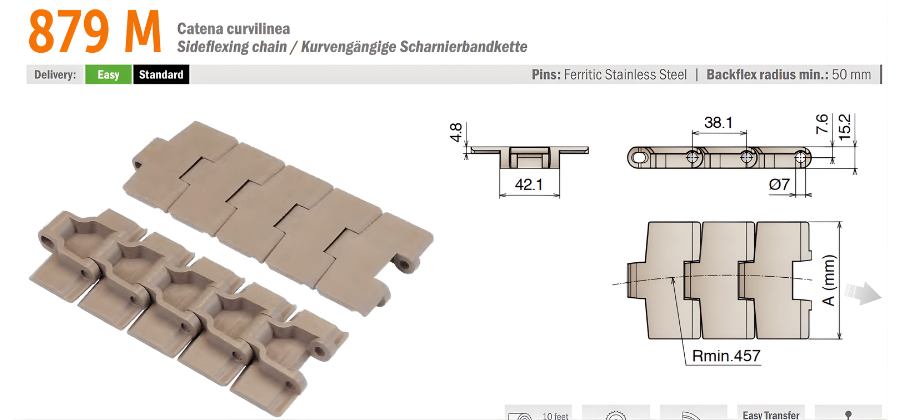

879 M Flat Top
879 M Flat Top
Series: 820-828-831-878-879-880-888
Basic Features
Pitch : 38.1 mm
Thickness: 4.8 mm
Surface Type: FT – Flat Top
Functionality: Side Flex MAGNETIC
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Technical Specifications:
| Product code | Product name | Material | Rmin | Pin material | Part | Max working load | Mass |
| P11190102 | LF 879M FT K 325 – 82,5 mm | LF | 457 | Ferritic Stainless Steel | P1119 | 2200 N | 1.05 kg/m |
| P11190105 | LF 879M FT K 450 – 114,3 mm | LF | 457 | Ferritic Stainless Steel | P1119 | 2200 N | 1.15 kg/m |
| P11190302 | MX 879M FT K 325 – 82,5 mm | MX | 457 | Ferritic Stainless Steel | P1119 | 1750 N | 1.05 kg/m |
| P11190305 | MX 879M FT K 450 – 114,3 mm | MX | 457 | Ferritic Stainless Steel | P1119 | 1750 N | 1.15 kg/m |
Material Specifications:
| Material | LF – Low friction acetal | MX – Performance PBT |
| Color | Black | |
| Temp. range dry: | -40÷80 °C | -40÷120 °C |
| Temp. range wet: | -40÷65 °C | -40÷60 °C |
| FDA approve | Yes | Yes |
