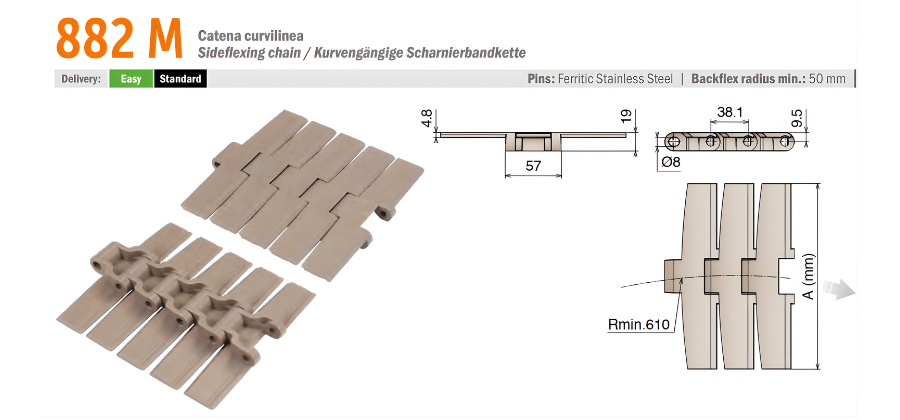

882 M Flat Top
882 M Flat Top
Series: 821-882-8257
Basic Features
Pitch : 38.1 mm
Thickness: 4.8 mm
Surface Type: FT – Flat Top
Functionality: Side Flex MAGNETIC
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Technical Specifications:
| Product code | Product name | Material | Rmin | Pin material | Part | Max working load | Mass |
| P11130107 | LF 822M FT K 750 – 190,5 mm | LF | 610 | Ferritic Stainless Steel | P1113 | 3830 N | 2.14 kg/m |
| P11130108 | LF 822M FT K1000 – 254,0 mm | LF | 610 | Ferritic Stainless Steel | P1113 | 3830 N | 2.45 kg/m |
| P11130109 | LF 822M FT K1200 – 304,8 mm | LF | 610 | Ferritic Stainless Steel | P1113 | 3830 N | 2.68 kg/m |
| P11130307 | MX 822M FT K 750 – 190,5 mm | MX | 610 | Ferritic Stainless Steel | P1113 | 3050 N | 2.14 kg/m |
| P11130308 | MX 822M FT K1000 – 254,0 mm | MX | 610 | Ferritic Stainless Steel | P1113 | 3050 N | 2.45 kg/m |
| P11130309 | MX 822M FT K1200 – 304,8 mm | MX | 610 | Ferritic Stainless Steel | P1113 | 3050 N | 2.68 kg/m |
Material Specifications:
| Material | LF – Low friction acetal | MX – Performance PBT |
| Color | Black | |
| Temp. range dry: | -40÷80 °C | -40÷120 °C |
| Temp. range wet: | -40÷65 °C | -40÷60 °C |
| FDA approve | Yes | Yes |
