553 FlexTop – P5530
553 FlexTop – P5530
Series: 553 Flex Top
Brand: Movex – Italy
Basic Features
- Pitch: 25.4mm
- Thickness:: 8.7mm
- Surface Type: Flex Top Multi-directional
- Functionality: Straight
- Temperature range dry: -40÷80 °C
- Material: LFG – Low friction acetal (Grey)
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty

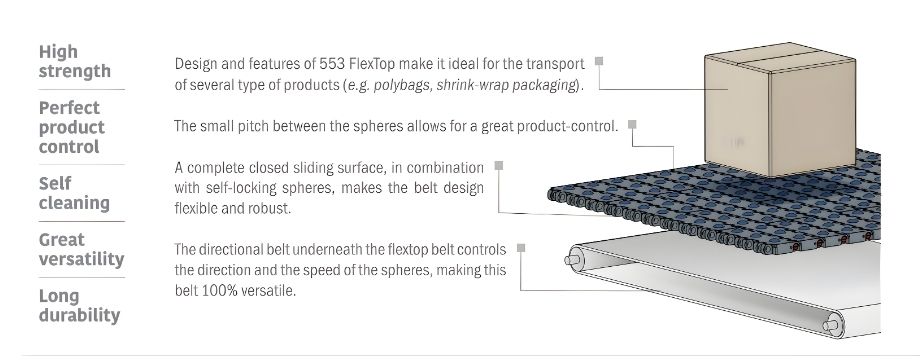

Description and Features

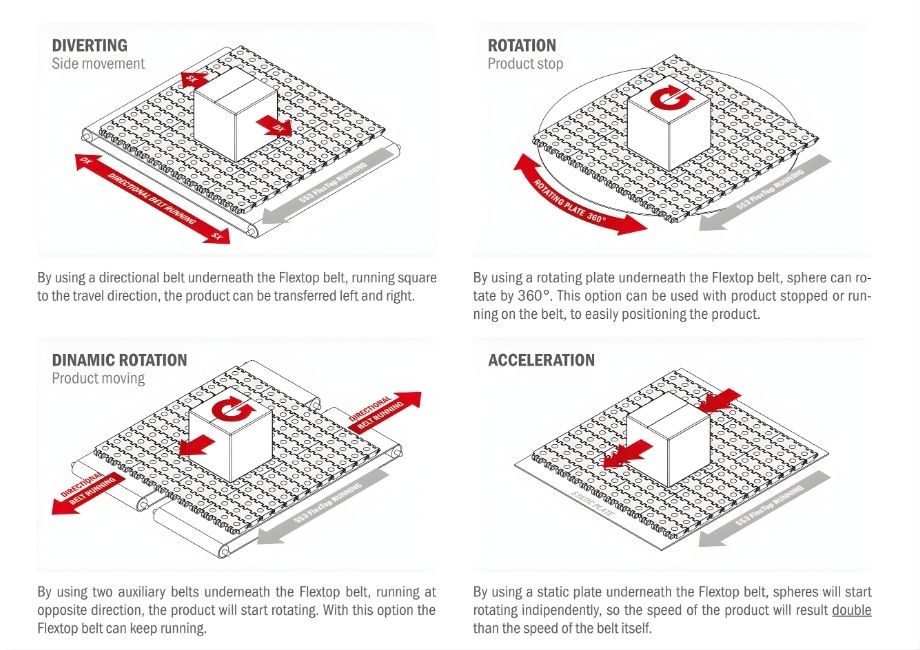

Product capabilities
Specifications
| Product code | Product name | Material | Version | Pin material | Part | Max working load | Mass |
| P5530270102A | LFG 553 Flex Top 102″ (2590,8 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270105A | LFG 553 Flex Top 105″ (2667 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270108A | LFG 553 Flex Top 108″ (2743,2 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270111A | LFG 553 Flex Top 111″ (2819,4 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270114A | LFG 553 Flex Top 114″ (2895,6 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270012A | LFG 553 Flex Top 12″ (304,8 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270015A | LFG 553 Flex Top 15″ (381 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270018A | LFG 553 Flex Top 18″ (457,2 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270021A | LFG 553 Flex Top 21″ (533,4 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270024A | LFG 553 Flex Top 24″ (609,6 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270027A | LFG 553 Flex Top 27″ (685,8 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270003A | LFG 553 Flex Top 3″ (76,2 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270030A | LFG 553 Flex Top 30″ (762 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270033A | LFG 553 Flex Top 33″ (838,2 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270036A | LFG 553 Flex Top 36″ (914,4 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270039A | LFG 553 Flex Top 39″ (990,6 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270042A | LFG 553 Flex Top 42″ (1066,8 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270045A | LFG 553 Flex Top 45″ (1143 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270048A | LFG 553 Flex Top 48″ (1219,2 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270051A | LFG 553 Flex Top 51″ (1295,4 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270054A | LFG 553 Flex Top 54″ (1371,6 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270057A | LFG 553 Flex Top 57″ (1447,8 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270006A | LFG 553 Flex Top 6″ (152,4 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270060A | LFG 553 Flex Top 60″ (1524 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270063A | LFG 553 Flex Top 63″ (1600,2 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270066A | LFG 553 Flex Top 66″ (1676,4 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270069A | LFG 553 Flex Top 69″ (1752,6 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270072A | LFG 553 Flex Top 72″ (1828,8 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270075A | LFG 553 Flex Top 75″ (1905 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270078A | LFG 553 Flex Top 78″ (1981,2 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270081A | LFG 553 Flex Top 81″ (2057,4 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270084A | LFG 553 Flex Top 84″ (2133,6 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270087A | LFG 553 Flex Top 87″ (2209,8 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270009A | LFG 553 Flex Top 9″ (228,6 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270090A | LFG 553 Flex Top 90″ (2286 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270093A | LFG 553 Flex Top 93″ (2362,2 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270096A | LFG 553 Flex Top 96″ (2438,4 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
| P5530270099A | LFG 553 Flex Top 99″ (2514,6 mm) | LFG | A | PBT White | P5530 | 27500 N/m | 10 kg/m^2 |
*Material Specifications
| LFG – Code 27 Low friction Acetal |
|
| Max w. load: | 27500 N/m |
| Weight: | 10,0 kg/m2 |
| Temp. range dry: | -40÷80 °C |
| Temp. range wet: | -40÷65 °C |
| Pin material | PBT white |
