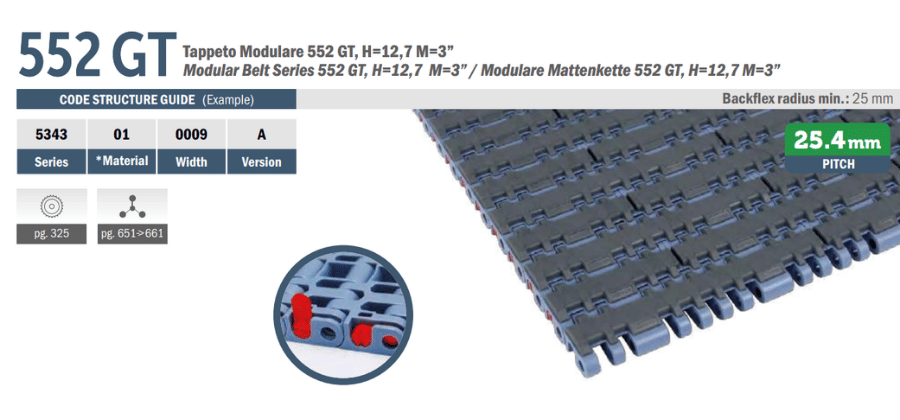

552 Grip Top – P5343
552 Grip Top – P5343
Series: 552
Brand: Movex – Italy
Basic Features
- Pitch: 25.4mm
- Thickness: 12.7mm
- Surface Type: GT – Grip Top
- Functionality: Straight
- Temperature range dry: -40÷104 °C
- Material: LFA, PP
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Specifications
| Product code | Product name | Material | Version | Pin material | Part | Max working load | Mass |
| P5343010009A | LFA 552 GT 9″ (228,6 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010012A | LFA 552 GT 12″ (304,8 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010015A | LFA 552 GT 15″ (381 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010018A | LFA 552 GT 18″ (457,2 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010021A | LFA 552 GT 21″ (533,4 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010024A | LFA 552 GT 24″ (609,6 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010027A | LFA 552 GT 27″ (685,8 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010030A | LFA 552 GT 30″ (762 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010033A | LFA 552 GT 33″ (838,2 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010036A | LFA 552 GT 36″ (914,4 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010039A | LFA 552 GT 39″ (990,6 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010042A | LFA 552 GT 42″ (1066,8 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010045A | LFA 552 GT 45″ (1143 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010048A | LFA 552 GT 48″ (1219,2 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010051A | LFA 552 GT 51″ (1295,4 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010054A | LFA 552 GT 54″ (1371,6 mm) | LFA | A | PBT White | P5343 | 41500 N/m | 15.5 kg/m^2 |
| P5343010012A-SS | LFA 552 GT 12″ (304,8 mm) | LFA | A | Stainless steel | P5343 | 45000 N/m | 22.9 kg/m^2 |
| P5343010015A-SS | LFA 552 GT 15″ (381 mm) | LFA | A | Stainless steel | P5343 | 45000 N/m | 22.9 kg/m^2 |
| P5343010018A-SS | LFA 552 GT 18″ (457,2 mm) | LFA | A | Stainless steel | P5343 | 45000 N/m | 22.9 kg/m^2 |
| P5343010021A-SS | LFA 552 GT 21″ (533,4 mm) | LFA | A | Stainless steel | P5343 | 45000 N/m | 22.9 kg/m^2 |
| P5343020009A | PP 552 GT 9″ (228,6 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020012A | PP 552 GT 12″ (304,8 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020015A | PP 552 GT 15″ (381 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020018A | PP 552 GT 18″ (457,2 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020021A | PP 552 GT 21″ (533,4 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020024A | PP 552 GT 24″ (609,6 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020027A | PP 552 GT 27″ (685,8 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020030A | PP 552 GT 30″ (762 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020033A | PP 552 GT 33″ (838,2 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020036A | PP 552 GT 36″ (914,4 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020039A | PP 552 GT 39″ (990,6 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020042A | PP 552 GT 42″ (1066,8 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020045A | PP 552 GT 45″ (1143 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020048A | PP 552 GT 48″ (1219,2 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020051A | PP 552 GT 51″ (1295,4 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020054A | PP 552 GT 54″ (1371,6 mm) | PP | A | PP Blue | P5343 | 27000 N/m | 13.5 kg/m^2 |
| P5343020012A-SS | PP 552 GT 12″ (304,8 mm) | PP | A | Stainless steel | P5343 | 30000 N/m | 18.9 kg/m^2 |
| P5343020015A-SS | PP 552 GT 15″ (381 mm) | PP | A | Stainless steel | P5343 | 30000 N/m | 18.9 kg/m^2 |
| P5343020018A-SS | PP 552 GT 18″ (457,2 mm) | PP | A | Stainless steel | P5343 | 30000 N/m | 18.9 kg/m^2 |
| P5343020021A-SS | PP 552 GT 21″ (533,4 mm) | PP | A | Stainless steel | P5343 | 30000 N/m | 18.9 kg/m^2 |
*Materials
| Material | LFA – Low friction acetal | PP – Polypropylene |
| Color | Cyan | Grey |
| Temp. range dry: | -40÷80 °C | 4÷104 °C |
| Temp. range wet: | -40÷65 °C | 4÷104 °C |
| FDA approve | Yes | YES |
Part of the Movex 552 series
- 552 Flat Top
- 552 Flat Top One Trạck Belt
- 552 Grip Top
- 552 Grip Top Side Indent
- 552 PT
- 552 PT One Track Belt
