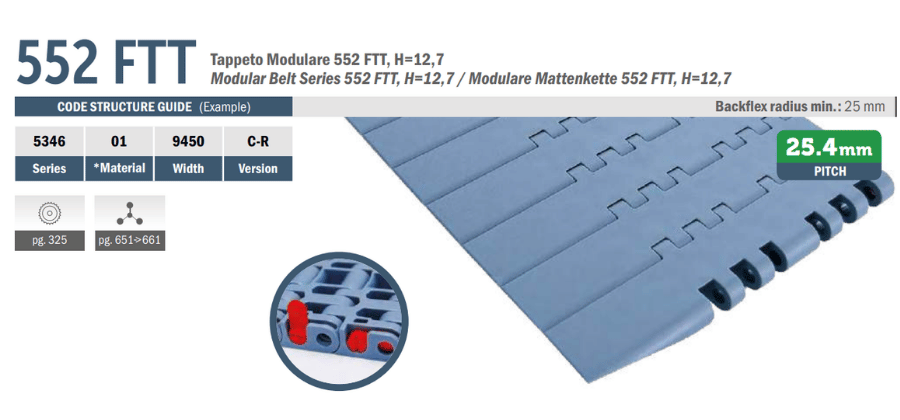

552 Flat Top Transfer

Series: 552

Basic Features

Pitch: 25.4mm
Thickness: 12.7mm
Surface Type: FT – Flat Top
Functionality: Straight

Request a quote

Contact MHP at 0909 840 002 for consultation and quotation!

Nationwide Delivery
Technical Waranty

552 Flat Top Transfer technical specifications:

duct code	Product name	Material	Version	Pin material	Part	Max working load	Mass
P5346019450C-L	LFA 552 FT Transfer 4,5″ (114,3 mm)	LFA	C-L	PBT white	P5346	–	13.5 kg/m^2
P5346019750C-L	LFA 552 FT Transfer 7,5″ (190,5 mm)	LFA	C-L	PBT white	P5346	–	13.5 kg/m^2
P5346019450C-R	LFA 552 FT Transfer 4,5″ (114,3 mm)	LFA	C-R	PBT white	P5346	–	13.5 kg/m^2
P5346019750C-R	LFA 552 FT Transfer 7,5″ (190,5 mm)	LFA	C-R	PBT white	P5346	–	13.5 kg/m^2
P5346039450C-L	MX 552 FT Transfer 4,5″ (114,3 mm)	MX	C-L	POM grey	P5346	–	13 kg/m^2
P5346039750C-L	MX 552 FT Transfer 7,5″ (190,5 mm)	MX	C-L	POM grey	P5346	–	13 kg/m^2
P5346039450C-R	MX 552 FT Transfer 4,5″ (114,3 mm)	MX	C-R	POM grey	P5346	–	13 kg/m^2
P5346039750C-R	MX 552 FT Transfer 7,5″ (190,5 mm)	MX	C-R	POM grey	P5346	–	13 kg/m^2
P5346259450C-L	MPX 552 FT Transfer 4,5″ (114,3 mm)	MPX	C-L	PBT white	P5346	–	13.5 kg/m^2
P5346259750C-L	MPX 552 FT Transfer 7,5″ (190,5 mm)	MPX	C-L	PBT white	P5346	–	13.5 kg/m^2
P5346259450C-R	MPX 552 FT Transfer 4,5″ (114,3 mm)	MPX	C-R	PBT white	P5346	–	13.5 kg/m^2
P5346259750C-R	MPX 552 FT Transfer 7,5″ (190,5 mm)	MPX	C-R	PBT white	P5346	–	13.5 kg/m^2
P5346179450C-L	MWX 552 FT Transfer 4,5″ (114,3 mm)	MWX	C-L	PBT white	P5346	–	14 kg/m^2
P5346179750C-L	MWX 552 FT Transfer 7,5″ (190,5 mm)	MWX	C-L	PBT white	P5346	–	14 kg/m^2
P5346179450C-R	MWX 552 FT Transfer 4,5″ (114,3 mm)	MWX	C-R	PBT white	P5346	–	14 kg/m^2
P5346179750C-R	MWX 552 FT Transfer 7,5″ (190,5 mm)	MWX	C-R	PBT white	P5346	–	14 kg/m^2

* Material Specifications:

Material	LFA – Low friction acetal	MX – Performance PBT	MWX – Polyamid Composite
Color	Cyan	Black	Black
Temp. range dry:	-40÷80 °C	-40÷120 °C	-40÷104 °C
Temp. range wet:	-40÷65 °C	-40÷60 °C	NO
FDA approve	Yes	Yes	–
