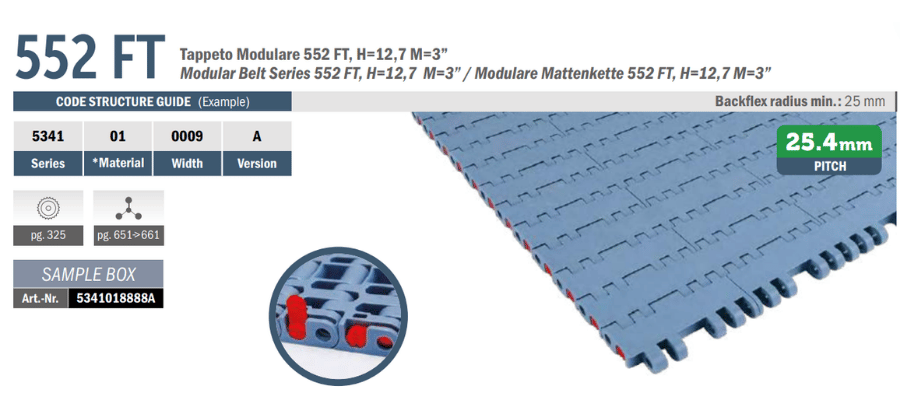

552 Flat Top – P5341
552 Flat Top – P5341
Series: 552
Brand: Movex – Italy
Basic Features
- Pitch: 25.4mm
- Thickness: 12.7mm
- Surface Type: FT – Flat Top
- Functionality: Straight
- Temperature range dry: -40÷120 °C
- Material: LFA, MX, MPX, MWX
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Specifications
| Product code | Product name | Material | Version | Pin material | Part | Max working load | Mass |
| P5341010009A | LFA 552 FT 9″ (228,6 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010012A | LFA 552 FT 12″ (304,8 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010015A | LFA 552 FT 15″ (381 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010018A | LFA 552 FT 18″ (457,2 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010021A | LFA 552 FT 21″ (533,4 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010024A | LFA 552 FT 24″ (609,6 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010027A | LFA 552 FT 27″ (685,8 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010030A | LFA 552 FT 30″ (762 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010033A | LFA 552 FT 33″ (838,2 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010036A | LFA 552 FT 36″ (914,4 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010039A | LFA 552 FT 39″ (990,6 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010042A | LFA 552 FT 42″ (1066,8 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010045A | LFA 552 FT 45″ (1143 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010048A | LFA 552 FT 48″ (1219,2 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010051A | LFA 552 FT 51″ (1295,4 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341010054A | LFA 552 FT 54″ (1371,6 mm) | LFA | A | PBT White | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341030009A | MX 552 FT 9″ (228,6 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030012A | MX 552 FT 12″ (304,8 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030015A | MX 552 FT 15″ (381 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030018A | MX 552 FT 18″ (457,2 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030021A | MX 552 FT 21″ (533,4 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030024A | MX 552 FT 24″ (609,6 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030027A | MX 552 FT 27″ (685,8 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030030A | MX 552 FT 30″ (762 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030033A | MX 552 FT 33″ (838,2 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030036A | MX 552 FT 36″ (914,4 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030039A | MX 552 FT 39″ (990,6 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030042A | MX 552 FT 42″ (1066,8 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030045A | MX 552 FT 45″ (1143 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030048A | MX 552 FT 48″ (1219,2 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030051A | MX 552 FT 51″ (1295,4 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341030054A | MX 552 FT 54″ (1371,6 mm) | MX | A | POM grey | P5341 | 33500 N/m | 13 kg/m^2 |
| P5341250009A | MPX 552 FT 9″ (228,6 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250012A | MPX 552 FT 12″ (304,8 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250015A | MPX 552 FT 15″ (381 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250018A | MPX 552 FT 18″ (457,2 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250021A | MPX 552 FT 21″ (533,4 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250024A | MPX 552 FT 24″ (609,6 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250027A | MPX 552 FT 27″ (685,8 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250030A | MPX 552 FT 30″ (762 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250033A | MPX 552 FT 33″ (838,2 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250036A | MPX 552 FT 36″ (914,4 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250039A | MPX 552 FT 39″ (990,6 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250042A | MPX 552 FT 42″ (1066,8 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250045A | MPX 552 FT 45″ (1143 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250048A | MPX 552 FT 48″ (1219,2 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250051A | MPX 552 FT 51″ (1295,4 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341250054A | MPX 552 FT 54″ (1371,6 mm) | MPX | A | PBT white | P5341 | 41500 N/m | 13.5 kg/m^2 |
| P5341170009A | MWX 552 FT 9″ (228,6 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170012A | MWX 552 FT 12″ (304,8 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170015A | MWX 552 FT 15″ (381 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170018A | MWX 552 FT 18″ (457,2 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170021A | MWX 552 FT 21″ (533,4 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170024A | MWX 552 FT 24″ (609,6 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170027A | MWX 552 FT 27″ (685,8 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170030A | MWX 552 FT 30″ (762 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170033A | MWX 552 FT 33″ (838,2 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170036A | MWX 552 FT 36″ (914,4 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170039A | MWX 552 FT 39″ (990,6 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170042A | MWX 552 FT 42″ (1066,8 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170045A | MWX 552 FT 45″ (1143 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170048A | MWX 552 FT 48″ (1219,2 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170051A | MWX 552 FT 51″ (1295,4 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
| P5341170054A | MWX 552 FT 54″ (1371,6 mm) | MWX | A | PBT white | P5341 | 41500 N/m | 14 kg/m^2 |
* Materials
| Material | LFA – Low friction acetal | MX – Performance PBT | MPX – Lubricated acetal | MWX – Polyamid Composite |
| Color | Cyan | Black | Grey | Black |
| Temp. range dry: | -40÷80 °C | -40÷120 °C | -40÷80 °C | -40÷104 °C |
| Temp. range wet: | -40÷65 °C | -40÷60 °C | -40÷65 °C | NO |
| FDA approve | Yes | Yes | YES | – |
