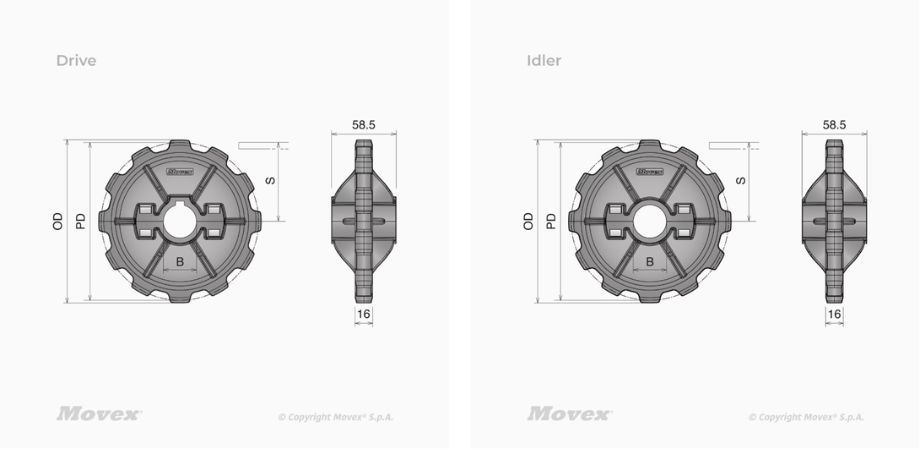

MOLDED SPLIT-SPROCKET CHAIN 880 z-12 df-30 – P55002
MOLDED SPLIT-SPROCKET CHAIN 880 z-12 df-30 – P55002
Series: 880 split molded sprocket
Brand: Movex – Italy
Basic Features
- Pitch: 38.1mm
- Z- : 12
- Version: Drive
- Execution: Molded
- Material: PA – Polyamide composite
- Temperature range dry: -40÷120 °C
- Box: 4 Ea/Box
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Technical features
| Product name | Movex 880 z-12 df-30 |
| Series | 880 split molded sprocket |
| Pitch | 38.1 mm |
| Z-: | 12 |
| Bore | 30 mm |
| Version | Drive |
| Type | Split |
| Execution | Molded |
| Pitch diameter | 147.2 mm |
| Outer diameter | 147.3 mm |
| Part | P55002 |
| Material | PA – Polyamide reinforced |
| Temperature range dry | -20÷120 °C |
| Box | 4 EA/Box |
