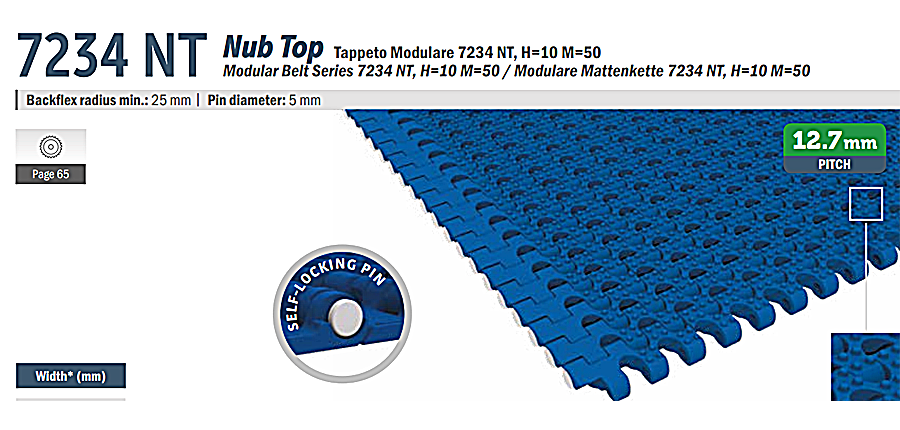

7234 Nub Top

Series: 7234

Brand: Movex – Italy

Basic Features

  • Pitch: 12.7mm
  • Thickness: 10mm
  • Surface Type: NT – Nub Top
  • Functionality: Straight
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
  • Nationwide Delivery
  • Technical Waranty

Movex 7234 NT Technical Specifications:

Product code Product name Material Version Pin material Part Max working load Mass
F7234NTLFC0050-PBT LFC 7234 NT 50 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0100-PBT LFC 7234 NT 100 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0150-PBT LFC 7234 NT 150 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0200-PBT LFC 7234 NT 200 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0250-PBT LFC 7234 NT 250 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0300-PBT LFC 7234 NT 300 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0350-PBT LFC 7234 NT 350 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0400-PBT LFC 7234 NT 400 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0450-PBT LFC 7234 NT 450 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0500-PBT LFC 7234 NT 500 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0550-PBT LFC 7234 NT 550 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0600-PBT LFC 7234 NT 600 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0650-PBT LFC 7234 NT 650 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0700-PBT LFC 7234 NT 700 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0750-PBT LFC 7234 NT 750 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0800-PBT LFC 7234 NT 800 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0850-PBT LFC 7234 NT 850 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0900-PBT LFC 7234 NT 900 mm LFC A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFC0050-PP LFC 7234 NT 50 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0100-PP LFC 7234 NT 100 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0150-PP LFC 7234 NT 150 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0200-PP LFC 7234 NT 200 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0250-PP LFC 7234 NT 250 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0300-PP LFC 7234 NT 300 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0350-PP LFC 7234 NT 350 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0400-PP LFC 7234 NT 400 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0450-PP LFC 7234 NT 450 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0500-PP LFC 7234 NT 500 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0550-PP LFC 7234 NT 550 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0600-PP LFC 7234 NT 600 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0650-PP LFC 7234 NT 650 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0700-PP LFC 7234 NT 700 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0750-PP LFC 7234 NT 750 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0800-PP LFC 7234 NT 800 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0850-PP LFC 7234 NT 850 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFC0900-PP LFC 7234 NT 900 mm LFC A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0050-PBT LFB 7234 NT 50 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0100-PBT LFB 7234 NT 100 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0150-PBT LFB 7234 NT 150 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0200-PBT LFB 7234 NT 200 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0250-PBT LFB 7234 NT 250 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0300-PBT LFB 7234 NT 300 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0350-PBT LFB 7234 NT 350 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0400-PBT LFB 7234 NT 400 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0450-PBT LFB 7234 NT 450 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0500-PBT LFB 7234 NT 500 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0550-PBT LFB 7234 NT 550 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0600-PBT LFB 7234 NT 600 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0650-PBT LFB 7234 NT 650 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0700-PBT LFB 7234 NT 700 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0750-PBT LFB 7234 NT 750 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0800-PBT LFB 7234 NT 800 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0850-PBT LFB 7234 NT 850 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0900-PBT LFB 7234 NT 900 mm LFB A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFB0050-PP LFB 7234 NT 50 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0100-PP LFB 7234 NT 100 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0150-PP LFB 7234 NT 150 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0200-PP LFB 7234 NT 200 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0250-PP LFB 7234 NT 250 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0300-PP LFB 7234 NT 300 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0350-PP LFB 7234 NT 350 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0400-PP LFB 7234 NT 400 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0450-PP LFB 7234 NT 450 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0500-PP LFB 7234 NT 500 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0550-PP LFB 7234 NT 550 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0600-PP LFB 7234 NT 600 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0650-PP LFB 7234 NT 650 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0700-PP LFB 7234 NT 700 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0750-PP LFB 7234 NT 750 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0800-PP LFB 7234 NT 800 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0850-PP LFB 7234 NT 850 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFB0900-PP LFB 7234 NT 900 mm LFB A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0050-PBT LFW 7234 NT 50 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0100-PBT LFW 7234 NT 100 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0150-PBT LFW 7234 NT 150 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0200-PBT LFW 7234 NT 200 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0250-PBT LFW 7234 NT 250 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0300-PBT LFW 7234 NT 300 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0350-PBT LFW 7234 NT 350 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0400-PBT LFW 7234 NT 400 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0450-PBT LFW 7234 NT 450 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0500-PBT LFW 7234 NT 500 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0550-PBT LFW 7234 NT 550 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0600-PBT LFW 7234 NT 600 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0650-PBT LFW 7234 NT 650 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0700-PBT LFW 7234 NT 700 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0750-PBT LFW 7234 NT 750 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0800-PBT LFW 7234 NT 800 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0850-PBT LFW 7234 NT 850 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0900-PBT LFW 7234 NT 900 mm LFW A PBT White F7234 18000 N/m 8.8 kg/m^2
F7234NTLFW0050-PP LFW 7234 NT 50 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0100-PP LFW 7234 NT 100 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0150-PP LFW 7234 NT 150 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0200-PP LFW 7234 NT 200 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0250-PP LFW 7234 NT 250 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0300-PP LFW 7234 NT 300 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0350-PP LFW 7234 NT 350 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0400-PP LFW 7234 NT 400 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0450-PP LFW 7234 NT 450 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0500-PP LFW 7234 NT 500 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0550-PP LFW 7234 NT 550 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0600-PP LFW 7234 NT 600 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0650-PP LFW 7234 NT 650 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0700-PP LFW 7234 NT 700 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0750-PP LFW 7234 NT 750 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0800-PP LFW 7234 NT 800 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0850-PP LFW 7234 NT 850 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTLFW0900-PP LFW 7234 NT 900 mm LFW A PP White F7234 16000 N/m 8.2 kg/m^2
F7234NTPEB0050-PE PEB 7234 NT 50 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0100-PE PEB 7234 NT 100 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0150-PE PEB 7234 NT 150 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0200-PE PEB 7234 NT 200 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0250-PE PEB 7234 NT 250 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0300-PE PEB 7234 NT 300 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0350-PE PEB 7234 NT 350 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0400-PE PEB 7234 NT 400 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0450-PE PEB 7234 NT 450 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0500-PE PEB 7234 NT 500 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0550-PE PEB 7234 NT 550 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0600-PE PEB 7234 NT 600 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0650-PE PEB 7234 NT 650 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0700-PE PEB 7234 NT 700 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0750-PE PEB 7234 NT 750 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0800-PE PEB 7234 NT 800 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0850-PE PEB 7234 NT 850 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEB0900-PE PEB 7234 NT 900 mm PEB A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0050-PE PEC 7234 NT 50 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0100-PE PEC 7234 NT 100 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0150-PE PEC 7234 NT 150 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0200-PE PEC 7234 NT 200 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0250-PE PEC 7234 NT 250 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0300-PE PEC 7234 NT 300 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0350-PE PEC 7234 NT 350 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0400-PE PEC 7234 NT 400 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0450-PE PEC 7234 NT 450 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0500-PE PEC 7234 NT 500 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0550-PE PEC 7234 NT 550 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0600-PE PEC 7234 NT 600 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0650-PE PEC 7234 NT 650 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0700-PE PEC 7234 NT 700 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0750-PE PEC 7234 NT 750 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0800-PE PEC 7234 NT 800 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0850-PE PEC 7234 NT 850 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEC0900-PE PEC 7234 NT 900 mm PEC A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0050-PE PEN 7234 NT 50 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0100-PE PEN 7234 NT 100 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0150-PE PEN 7234 NT 150 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0200-PE PEN 7234 NT 200 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0250-PE PEN 7234 NT 250 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0300-PE PEN 7234 NT 300 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0350-PE PEN 7234 NT 350 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0400-PE PEN 7234 NT 400 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0450-PE PEN 7234 NT 450 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0500-PE PEN 7234 NT 500 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0550-PE PEN 7234 NT 550 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0600-PE PEN 7234 NT 600 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0650-PE PEN 7234 NT 650 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0700-PE PEN 7234 NT 700 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0750-PE PEN 7234 NT 750 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0800-PE PEN 7234 NT 800 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0850-PE PEN 7234 NT 850 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEN0900-PE PEN 7234 NT 900 mm PEN A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0050-PE PEW 7234 NT 50 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0100-PE PEW 7234 NT 100 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0150-PE PEW 7234 NT 150 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0200-PE PEW 7234 NT 200 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0250-PE PEW 7234 NT 250 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0300-PE PEW 7234 NT 300 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0350-PE PEW 7234 NT 350 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0400-PE PEW 7234 NT 400 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0450-PE PEW 7234 NT 450 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0500-PE PEW 7234 NT 500 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0550-PE PEW 7234 NT 550 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0600-PE PEW 7234 NT 600 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0650-PE PEW 7234 NT 650 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0700-PE PEW 7234 NT 700 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0750-PE PEW 7234 NT 750 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0800-PE PEW 7234 NT 800 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0850-PE PEW 7234 NT 850 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPEW0900-PE PEW 7234 NT 900 mm PEW A PE White F7234 7000 N/m 5.9 kg/m^2
F7234NTPPC0050-PP PPC 7234 NT 50 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0100-PP PPC 7234 NT 100 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0150-PP PPC 7234 NT 150 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0200-PP PPC 7234 NT 200 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0250-PP PPC 7234 NT 250 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0300-PP PPC 7234 NT 300 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0350-PP PPC 7234 NT 350 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0400-PP PPC 7234 NT 400 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0450-PP PPC 7234 NT 450 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0500-PP PPC 7234 NT 500 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0550-PP PPC 7234 NT 550 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0600-PP PPC 7234 NT 600 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0650-PP PPC 7234 NT 650 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0700-PP PPC 7234 NT 700 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0750-PP PPC 7234 NT 750 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0800-PP PPC 7234 NT 800 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0850-PP PPC 7234 NT 850 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPC0900-PP PPC 7234 NT 900 mm PPC A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0050-PP PPW 7234 NT 50 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0100-PP PPW 7234 NT 100 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0150-PP PPW 7234 NT 150 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0200-PP PPW 7234 NT 200 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0250-PP PPW 7234 NT 250 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0300-PP PPW 7234 NT 300 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0350-PP PPW 7234 NT 350 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0400-PP PPW 7234 NT 400 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0450-PP PPW 7234 NT 450 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0500-PP PPW 7234 NT 500 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0550-PP PPW 7234 NT 550 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0600-PP PPW 7234 NT 600 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0650-PP PPW 7234 NT 650 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0700-PP PPW 7234 NT 700 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0750-PP PPW 7234 NT 750 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0800-PP PPW 7234 NT 800 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0850-PP PPW 7234 NT 850 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPW0900-PP PPW 7234 NT 900 mm PPW A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0050-PP PPB 7234 NT 50 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0100-PP PPB 7234 NT 100 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0150-PP PPB 7234 NT 150 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0200-PP PPB 7234 NT 200 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0250-PP PPB 7234 NT 250 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0300-PP PPB 7234 NT 300 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0350-PP PPB 7234 NT 350 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0400-PP PPB 7234 NT 400 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0450-PP PPB 7234 NT 450 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0500-PP PPB 7234 NT 500 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0550-PP PPB 7234 NT 550 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0600-PP PPB 7234 NT 600 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0650-PP PPB 7234 NT 650 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0700-PP PPB 7234 NT 700 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0750-PP PPB 7234 NT 750 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0800-PP PPB 7234 NT 800 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0850-PP PPB 7234 NT 850 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2
F7234NTPPB0900-PP PPB 7234 NT 900 mm PPB A PP White F7234 11000 N/m 5.7 kg/m^2

Materiral Specifications:

Material LFB – Low friction acetal LFC – Low friction acetal  LFW- Low friction acetal  PPB – Polypropylene PPW – Polypropylene PPC – Polypropylene PEB –  Polyethylene PEN –  Polyethylene PEC –  Polyethylene PEW –  Polyethylene
Color Blue cyan white Blue White White Blue Natural Cyan White
Temp. range dry: -40÷80 °C -40÷80 °C -40÷80 °C 4÷104 °C 4÷104 °C 4÷104 °C -73÷65 °C -73÷65 °C -73÷65 °C -73÷65 °C
Temp. range wet: -40÷65 °C -40÷65 °C -40÷65 °C 4÷104 °C 4÷104 °C 4÷104 °C -73÷65 °C -73÷65 °C -73÷65 °C -73÷65 °C
FDA approve Yes Yes Yes YES YES YES YES YES YES YES



pdf

Movex Blueline Modular Belts And Sprockets

pdf

Movex_Blueline_ProduNTsOverview_Digital_V4.pdf

pdf

Movex MDX Metal Detecable X-Ray Material

Request a quote




Product

CATEGORY

Product relate

mhptechnique

590 split machined sprocket

mhptechnique

556 machined sprocket

mhptechnique

553 split machined sprocket

mhptechnique

553 one-piece molded sprocket

mhptechnique

552 split machined sprocket

mhptechnique

551 molded sprocket

Viewed products

mhptechnique

7234 Nub Top

mhp
LINKS
RECEIVE INFORMATION

Contact MHP to receive information

Office & Warehouse
Headquarter
MHP TECHNIQUE CO., LTD 2022 I | All Rights Reserved
