7233 Flush Grid – F7233

Series: 7233

Brand: Movex – Italy

Basic Features

  • Pitch: 12.7mm
  • Thickness: 10mm
  • Surface Type: FG – Flush Grid
  • Functionality: Straight
  • Temperature range dry: -73-120 °C
  • Material: LFB, LFC, LFW, PEB, PEC, PEN, PPC, PPW, PPB, PEW
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
  • Nationwide Delivery
  • Technical Waranty

Specifications

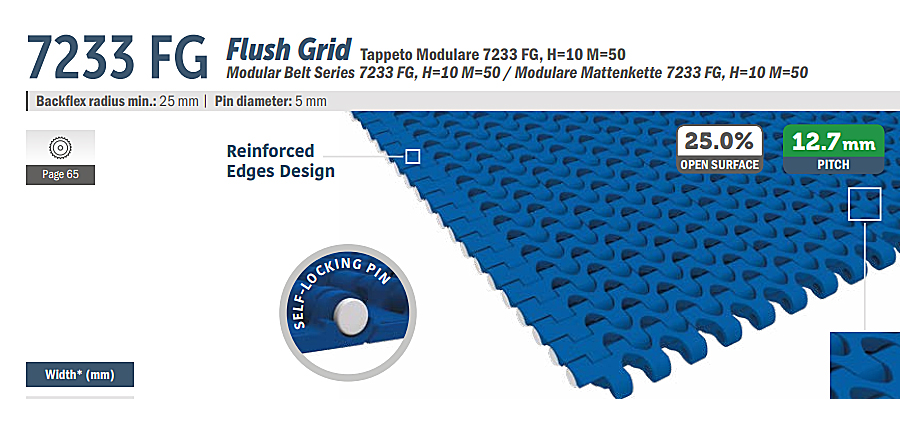

Movex 7233 Flush Grid
Movex 7233 Flush Grid
Product code Product name Material Version Pin material Part Max working load Mass
F7233FGLFC0050-PBT LFC 7233 FG 50 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0100-PBT LFC 7233 FG 100 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0150-PBT LFC 7233 FG 150 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0200-PBT LFC 7233 FG 200 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0250-PBT LFC 7233 FG 250 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0300-PBT LFC 7233 FG 300 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0350-PBT LFC 7233 FG 350 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0400-PBT LFC 7233 FG 400 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0450-PBT LFC 7233 FG 450 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0500-PBT LFC 7233 FG 500 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0550-PBT LFC 7233 FG 550 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0600-PBT LFC 7233 FG 600 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0650-PBT LFC 7233 FG 650 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0700-PBT LFC 7233 FG 700 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0750-PBT LFC 7233 FG 750 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0800-PBT LFC 7233 FG 800 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0850-PBT LFC 7233 FG 850 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0900-PBT LFC 7233 FG 900 mm LFC A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFC0050-PP LFC 7233 FG 50 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0100-PP LFC 7233 FG 100 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0150-PP LFC 7233 FG 150 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0200-PP LFC 7233 FG 200 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0250-PP LFC 7233 FG 250 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0300-PP LFC 7233 FG 300 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0350-PP LFC 7233 FG 350 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0400-PP LFC 7233 FG 400 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0450-PP LFC 7233 FG 450 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0500-PP LFC 7233 FG 500 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0550-PP LFC 7233 FG 550 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0600-PP LFC 7233 FG 600 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0650-PP LFC 7233 FG 650 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0700-PP LFC 7233 FG 700 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0750-PP LFC 7233 FG 750 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0800-PP LFC 7233 FG 800 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0850-PP LFC 7233 FG 850 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0900-PP LFC 7233 FG 900 mm LFC A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFC0050-PE LFC 7233 FG 50 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0100-PE LFC 7233 FG 100 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0150-PE LFC 7233 FG 150 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0200-PE LFC 7233 FG 200 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0250-PE LFC 7233 FG 250 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0300-PE LFC 7233 FG 300 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0350-PE LFC 7233 FG 350 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0400-PE LFC 7233 FG 400 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0450-PE LFC 7233 FG 450 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0500-PE LFC 7233 FG 500 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0550-PE LFC 7233 FG 550 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0600-PE LFC 7233 FG 600 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0650-PE LFC 7233 FG 650 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0700-PE LFC 7233 FG 700 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0750-PE LFC 7233 FG 750 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0800-PE LFC 7233 FG 800 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0850-PE LFC 7233 FG 850 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFC0900-PE LFC 7233 FG 900 mm LFC A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0050-PBT LFB 7233 FG 50 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0100-PBT LFB 7233 FG 100 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0150-PBT LFB 7233 FG 150 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0200-PBT LFB 7233 FG 200 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0250-PBT LFB 7233 FG 250 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0300-PBT LFB 7233 FG 300 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0350-PBT LFB 7233 FG 350 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0400-PBT LFB 7233 FG 400 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0450-PBT LFB 7233 FG 450 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0500-PBT LFB 7233 FG 500 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0550-PBT LFB 7233 FG 550 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0600-PBT LFB 7233 FG 600 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0650-PBT LFB 7233 FG 650 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0700-PBT LFB 7233 FG 700 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0750-PBT LFB 7233 FG 750 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0800-PBT LFB 7233 FG 800 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0850-PBT LFB 7233 FG 850 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0900-PBT LFB 7233 FG 900 mm LFB A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFB0050-PP LFB 7233 FG 50 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0100-PP LFB 7233 FG 100 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0150-PP LFB 7233 FG 150 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0200-PP LFB 7233 FG 200 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0250-PP LFB 7233 FG 250 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0300-PP LFB 7233 FG 300 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0350-PP LFB 7233 FG 350 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0400-PP LFB 7233 FG 400 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0450-PP LFB 7233 FG 450 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0500-PP LFB 7233 FG 500 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0550-PP LFB 7233 FG 550 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0600-PP LFB 7233 FG 600 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0650-PP LFB 7233 FG 650 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0700-PP LFB 7233 FG 700 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0750-PP LFB 7233 FG 750 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0800-PP LFB 7233 FG 800 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0850-PP LFB 7233 FG 850 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0900-PP LFB 7233 FG 900 mm LFB A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFB0050-PE LFB 7233 FG 50 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0100-PE LFB 7233 FG 100 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0150-PE LFB 7233 FG 150 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0200-PE LFB 7233 FG 200 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0250-PE LFB 7233 FG 250 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0300-PE LFB 7233 FG 300 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0350-PE LFB 7233 FG 350 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0400-PE LFB 7233 FG 400 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0450-PE LFB 7233 FG 450 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0500-PE LFB 7233 FG 500 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0550-PE LFB 7233 FG 550 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0600-PE LFB 7233 FG 600 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0650-PE LFB 7233 FG 650 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0700-PE LFB 7233 FG 700 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0750-PE LFB 7233 FG 750 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0800-PE LFB 7233 FG 800 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0850-PE LFB 7233 FG 850 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFB0900-PE LFB 7233 FG 900 mm LFB A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0050-PBT LFW 7233 FG 50 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0100-PBT LFW 7233 FG 100 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0150-PBT LFW 7233 FG 150 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0200-PBT LFW 7233 FG 200 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0250-PBT LFW 7233 FG 250 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0300-PBT LFW 7233 FG 300 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0350-PBT LFW 7233 FG 350 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0400-PBT LFW 7233 FG 400 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0450-PBT LFW 7233 FG 450 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0500-PBT LFW 7233 FG 500 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0550-PBT LFW 7233 FG 550 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0600-PBT LFW 7233 FG 600 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0650-PBT LFW 7233 FG 650 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0700-PBT LFW 7233 FG 700 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0750-PBT LFW 7233 FG 750 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0800-PBT LFW 7233 FG 800 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0850-PBT LFW 7233 FG 850 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0900-PBT LFW 7233 FG 900 mm LFW A PBT White F7233 18000 N/m 8.4 kg/m^2
F7233FGLFW0050-PP LFW 7233 FG 50 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0100-PP LFW 7233 FG 100 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0150-PP LFW 7233 FG 150 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0200-PP LFW 7233 FG 200 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0250-PP LFW 7233 FG 250 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0300-PP LFW 7233 FG 300 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0350-PP LFW 7233 FG 350 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0400-PP LFW 7233 FG 400 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0450-PP LFW 7233 FG 450 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0500-PP LFW 7233 FG 500 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0550-PP LFW 7233 FG 550 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0600-PP LFW 7233 FG 600 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0650-PP LFW 7233 FG 650 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0700-PP LFW 7233 FG 700 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0750-PP LFW 7233 FG 750 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0800-PP LFW 7233 FG 800 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0850-PP LFW 7233 FG 850 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0900-PP LFW 7233 FG 900 mm LFW A PP White F7233 16000 N/m 7.8 kg/m^2
F7233FGLFW0050-PE LFW 7233 FG 50 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0100-PE LFW 7233 FG 100 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0150-PE LFW 7233 FG 150 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0200-PE LFW 7233 FG 200 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0250-PE LFW 7233 FG 250 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0300-PE LFW 7233 FG 300 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0350-PE LFW 7233 FG 350 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0400-PE LFW 7233 FG 400 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0450-PE LFW 7233 FG 450 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0500-PE LFW 7233 FG 500 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0550-PE LFW 7233 FG 550 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0600-PE LFW 7233 FG 600 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0650-PE LFW 7233 FG 650 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0700-PE LFW 7233 FG 700 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0750-PE LFW 7233 FG 750 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0800-PE LFW 7233 FG 800 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0850-PE LFW 7233 FG 850 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGLFW0900-PE LFW 7233 FG 900 mm LFW A PE White F7233 8000 N/m 7.9 kg/m^2
F7233FGPEB0050-PP PEB 7233 FG 50 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0100-PP PEB 7233 FG 100 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0150-PP PEB 7233 FG 150 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0200-PP PEB 7233 FG 200 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0250-PP PEB 7233 FG 250 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0300-PP PEB 7233 FG 300 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0350-PP PEB 7233 FG 350 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0400-PP PEB 7233 FG 400 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0450-PP PEB 7233 FG 450 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0500-PP PEB 7233 FG 500 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0550-PP PEB 7233 FG 550 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0600-PP PEB 7233 FG 600 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0650-PP PEB 7233 FG 650 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0700-PP PEB 7233 FG 700 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0750-PP PEB 7233 FG 750 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0800-PP PEB 7233 FG 800 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0850-PP PEB 7233 FG 850 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEB0900-PP PEB 7233 FG 900 mm PEB A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0050-PP PEN 7233 FG 50 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0100-PP PEN 7233 FG 100 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0150-PP PEN 7233 FG 150 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0200-PP PEN 7233 FG 200 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0250-PP PEN 7233 FG 250 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0300-PP PEN 7233 FG 300 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0350-PP PEN 7233 FG 350 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0400-PP PEN 7233 FG 400 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0450-PP PEN 7233 FG 450 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0500-PP PEN 7233 FG 500 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0550-PP PEN 7233 FG 550 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0600-PP PEN 7233 FG 600 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0650-PP PEN 7233 FG 650 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0700-PP PEN 7233 FG 700 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0750-PP PEN 7233 FG 750 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0800-PP PEN 7233 FG 800 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0850-PP PEN 7233 FG 850 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEN0900-PP PEN 7233 FG 900 mm PEN A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0050-PP PEW 7233 FG 50 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0100-PP PEW 7233 FG 100 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0150-PP PEW 7233 FG 150 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0200-PP PEW 7233 FG 200 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0250-PP PEW 7233 FG 250 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0300-PP PEW 7233 FG 300 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0350-PP PEW 7233 FG 350 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0400-PP PEW 7233 FG 400 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0450-PP PEW 7233 FG 450 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0500-PP PEW 7233 FG 500 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0550-PP PEW 7233 FG 550 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0600-PP PEW 7233 FG 600 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0650-PP PEW 7233 FG 650 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0700-PP PEW 7233 FG 700 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0750-PP PEW 7233 FG 750 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0800-PP PEW 7233 FG 800 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0850-PP PEW 7233 FG 850 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPEW0900-PP PEW 7233 FG 900 mm PEW A PP White F7233 11000 N/m 5.6 kg/m^2
F7233FGPPC0050-PP PPC 7233 FG 50 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0100-PP PPC 7233 FG 100 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0150-PP PPC 7233 FG 150 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0200-PP PPC 7233 FG 200 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0250-PP PPC 7233 FG 250 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0300-PP PPC 7233 FG 300 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0350-PP PPC 7233 FG 350 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0400-PP PPC 7233 FG 400 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0450-PP PPC 7233 FG 450 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0500-PP PPC 7233 FG 500 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0550-PP PPC 7233 FG 550 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0600-PP PPC 7233 FG 600 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0650-PP PPC 7233 FG 650 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0700-PP PPC 7233 FG 700 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0750-PP PPC 7233 FG 750 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0800-PP PPC 7233 FG 800 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0850-PP PPC 7233 FG 850 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPC0900-PP PPC 7233 FG 900 mm PPC A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0050-PP PPW 7233 FG 50 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0100-PP PPW 7233 FG 100 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0150-PP PPW 7233 FG 150 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0200-PP PPW 7233 FG 200 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0250-PP PPW 7233 FG 250 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0300-PP PPW 7233 FG 300 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0350-PP PPW 7233 FG 350 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0400-PP PPW 7233 FG 400 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0450-PP PPW 7233 FG 450 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0500-PP PPW 7233 FG 500 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0550-PP PPW 7233 FG 550 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0600-PP PPW 7233 FG 600 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0650-PP PPW 7233 FG 650 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0700-PP PPW 7233 FG 700 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0750-PP PPW 7233 FG 750 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0800-PP PPW 7233 FG 800 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0850-PP PPW 7233 FG 850 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPW0900-PP PPW 7233 FG 900 mm PPW A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0050-PP PPB 7233 FG 50 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0100-PP PPB 7233 FG 100 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0150-PP PPB 7233 FG 150 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0200-PP PPB 7233 FG 200 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0250-PP PPB 7233 FG 250 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0300-PP PPB 7233 FG 300 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0350-PP PPB 7233 FG 350 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0400-PP PPB 7233 FG 400 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0450-PP PPB 7233 FG 450 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0500-PP PPB 7233 FG 500 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0550-PP PPB 7233 FG 550 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0600-PP PPB 7233 FG 600 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0650-PP PPB 7233 FG 650 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0700-PP PPB 7233 FG 700 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0750-PP PPB 7233 FG 750 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0800-PP PPB 7233 FG 800 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0850-PP PPB 7233 FG 850 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2
F7233FGPPB0900-PP PPB 7233 FG 900 mm PPB A PP White F7233 11000 N/m 5.5 kg/m^2

*Material

Material LFB – Low friction acetal LFC – Low friction acetal LFW- Low friction acetal PPB – Polypropylene PPW – Polypropylene PPC – Polypropylene PEB –  Polyethylene PEN –  Polyethylene PEC –  Polyethylene PEW –  Polyethylene
Color Blue cyan white Blue White White Blue Natural Cyan White
Temp. range dry: -40÷80 °C -40÷80 °C -40÷80 °C 4÷104 °C 4÷104 °C 4÷104 °C -73÷65 °C -73÷65 °C -73÷65 °C -73÷65 °C
Temp. range wet: -40÷65 °C -40÷65 °C -40÷65 °C 4÷104 °C 4÷104 °C 4÷104 °C -73÷65 °C -73÷65 °C -73÷65 °C -73÷65 °C
FDA approve Yes Yes Yes YES YES YES YES YES YES YES

Part of the Movex 7233 series

  • 7233 Grip top and Flush Grid



View more

Modular Belt

Blueline

Straight



Document

pdf

Movex Blueline Modular Belts And Sprockets

pdf

Movex_Blueline_ProduNTsOverview_Digital_V4.pdf

pdf

Movex MDX Metal Detecable X-Ray Material

Request a quote




Product

CATEGORY

Product relate

mhptechnique

590 split machined sprocket

mhptechnique

556 machined sprocket

mhptechnique

553 split machined sprocket

mhptechnique

553 one-piece molded sprocket

mhptechnique

552 split machined sprocket

mhptechnique

551 molded sprocket

Viewed products

mhptechnique

Guide rail Part 142

mhptechnique

552 Flat Top – P5341

mhptechnique

520 Flush Grid

mhptechnique

7233 Flush Grid – F7233

mhptechnique

828 Flat Top

mhp
LINKS
RECEIVE INFORMATION

Contact MHP to receive information

Office & Warehouse
Headquarter
MHP TECHNIQUE CO., LTD 2022 I | All Rights Reserved
