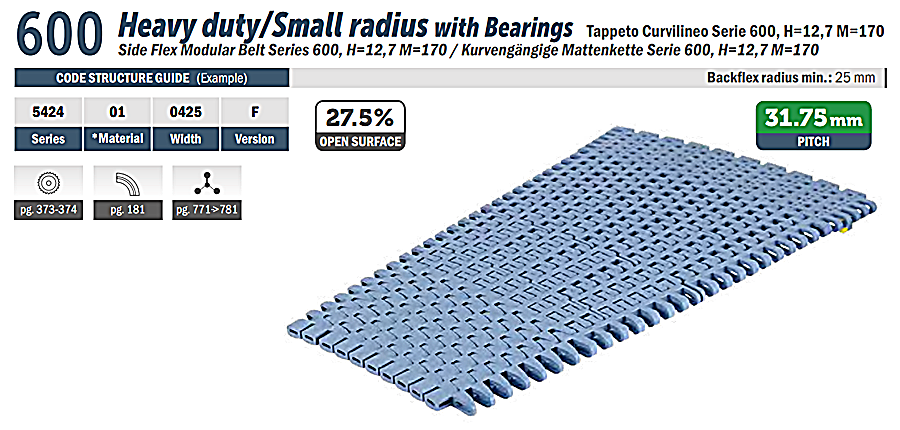

600 Heavy Duty / Small Radius with Bearings
600 Heavy Duty / Small Radius with Bearings
Series: 600
Brand: Movex – Italy
Basic Features
- Pitch: 31.75mm
- Thickness: 12.7mm
- Surface Type: FT – Flat Top
- Functionality: Side-Flexing
- Temperature range dry: -40÷80 °C
- Material: LFA, LFB
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Specifications
| Product code | Product name | Ma | Version | Pin material | Part | Max working load | Mass |
| P5424010255F | LFA 600 HD Small Radius Bearings 255 mm | LFA | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424010340F | LFA 600 HD Small Radius Bearings 340 mm | LFA | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424010425F | LFA 600 HD Small Radius Bearings 425 mm | LFA | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424010510F | LFA 600 HD Small Radius Bearings 510 mm | LFA | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424010595F | LFA 600 HD Small Radius Bearings 595 mm | LFA | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424010680F | LFA 600 HD Small Radius Bearings 680 mm | LFA | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424010765F | LFA 600 HD Small Radius Bearings 765 mm | LFA | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424010850F | LFA 600 HD Small Radius Bearings 850 mm | LFA | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424230255F | LFB 600 HD Small Radius Bearings 255 mm | LFB | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424230340F | LFB 600 HD Small Radius Bearings 340 mm | LFB | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424230425F | LFB 600 HD Small Radius Bearings 425 mm | LFB | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424230510F | LFB 600 HD Small Radius Bearings 510 mm | LFB | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424230595F | LFB 600 HD Small Radius Bearings 595 mm | LFB | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424230680F | LFB 600 HD Small Radius Bearings 680 mm | LFB | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424230765F | LFB 600 HD Small Radius Bearings 765 mm | LFB | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
| P5424230850F | LFB 600 HD Small Radius Bearings 850 mm | LFB | F – Heavy Duty / Small Radius With Bearings | PBT white | P5424 | 30000 N/m | 8.5 kg/m^2 |
*Material
| Material | LFA – Low friction acetal | LFB – Low friction acetal |
| Color | Cyan | Blue |
| Temp. range dry | -40÷80 °C | -40÷80 °C |
| Temp. range wet | -40÷65 °C | -40÷65 °C |
| FDA approve | Yes | Yes |
Part of the Movex 600 series
- 600 Heavy Duty
- 600 Heavy Duty With Bearings
- 600 Standard
- 600 Small Radius
- 600 Heavy Duty Small Radius
