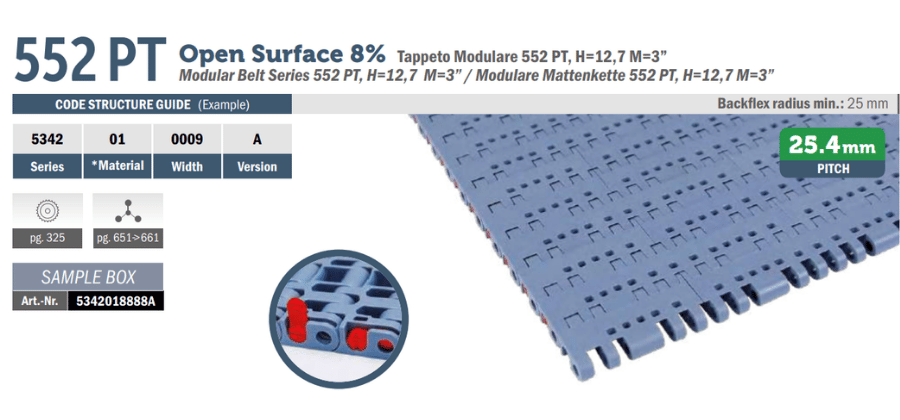

552 Perforated Top – P5342
552 Perforated Top – P5342
Series: 522
Brand: Movex – Italy
Basic Features
- Pitch: 25.4mm
- Thickness: 12.7mm
- Surface Type: PT – Perforated Top
- Functionality: Straight
- Temperature range dry: -40÷120 °C
- Material: LFA,MX ,MWX, MPX
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Specifications
| Product code | Product name | Material | Version | Pin material | Part | Max working load | Mass |
| P5342010009A | LFA 552 PT 9″ (228,6 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010012A | LFA 552 PT 12″ (304,8 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010015A | LFA 552 PT 15″ (381 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010018A | LFA 552 PT 18″ (457,2 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010021A | LFA 552 PT 21″ (533,4 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010024A | LFA 552 PT 24″ (609,6 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010027A | LFA 552 PT 27″ (685,8 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010030A | LFA 552 PT 30″ (762 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010033A | LFA 552 PT 33″ (838,2 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010036A | LFA 552 PT 36″ (914,4 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010039A | LFA 552 PT 39″ (990,6 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010042A | LFA 552 PT 42″ (1066,8 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010045A | LFA 552 PT 45″ (1143 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010048A | LFA 552 PT 48″ (1219,2 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010051A | LFA 552 PT 51″ (1295,4 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342010054A | LFA 552 PT 54″ (1371,6 mm) | LFA | A | PBT White | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342030009A | MX 552 PT 9″ (228,6 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030012A | MX 552 PT 12″ (304,8 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030015A | MX 552 PT 15″ (381 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030018A | MX 552 PT 18″ (457,2 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030021A | MX 552 PT 21″ (533,4 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030024A | MX 552 PT 24″ (609,6 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030027A | MX 552 PT 27″ (685,8 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030030A | MX 552 PT 30″ (762 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030033A | MX 552 PT 33″ (838,2 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030036A | MX 552 PT 36″ (914,4 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030039A | MX 552 PT 39″ (990,6 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030042A | MX 552 PT 42″ (1066,8 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030045A | MX 552 PT 45″ (1143 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030048A | MX 552 PT 48″ (1219,2 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030051A | MX 552 PT 51″ (1295,4 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342030054A | MX 552 PT 54″ (1371,6 mm) | MX | A | POM grey | P5342 | 33500 N/m | 12.7 kg/m^2 |
| P5342250009A | MPX 552 PT 9″ (228,6 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250012A | MPX 552 PT 12″ (304,8 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250015A | MPX 552 PT 15″ (381 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250018A | MPX 552 PT 18″ (457,2 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250021A | MPX 552 PT 21″ (533,4 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250024A | MPX 552 PT 24″ (609,6 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250027A | MPX 552 PT 27″ (685,8 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250030A | MPX 552 PT 30″ (762 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250033A | MPX 552 PT 33″ (838,2 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250036A | MPX 552 PT 36″ (914,4 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250039A | MPX 552 PT 39″ (990,6 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250042A | MPX 552 PT 42″ (1066,8 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250045A | MPX 552 PT 45″ (1143 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250048A | MPX 552 PT 48″ (1219,2 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250051A | MPX 552 PT 51″ (1295,4 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.2 kg/m^2 |
| P5342250054A | MPX 552 PT 54″ (1371,6 mm) | MPX | A | PBT white | P5342 | 41500 N/m | 13.5 kg/m^2 |
| P5342170009A | MWX 552 PT 9″ (228,6 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170012A | MWX 552 PT 12″ (304,8 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170015A | MWX 552 PT 15″ (381 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170018A | MWX 552 PT 18″ (457,2 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170021A | MWX 552 PT 21″ (533,4 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170024A | MWX 552 PT 24″ (609,6 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170027A | MWX 552 PT 27″ (685,8 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170030A | MWX 552 PT 30″ (762 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170033A | MWX 552 PT 33″ (838,2 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170036A | MWX 552 PT 36″ (914,4 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170039A | MWX 552 PT 39″ (990,6 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170042A | MWX 552 PT 42″ (1066,8 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170045A | MWX 552 PT 45″ (1143 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170048A | MWX 552 PT 48″ (1219,2 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170051A | MWX 552 PT 51″ (1295,4 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
| P5342170054A | MWX 552 PT 54″ (1371,6 mm) | MWX | A | PBT white | P5342 | 41500 N/m | 13.7 kg/m^2 |
*Materials
| Material | LFA – Low friction acetal | MX – Performance PBT | MWX – Polyamid Composite | MPX – Lubricated acetal |
| Color | Cyan | Black | Black | Grey |
| Temp. range dry: | -40÷80 °C | -40÷120 °C | -40÷104 °C | -40÷80 °C |
| Temp. range wet: | -40÷65 °C | -40÷60 °C | NO | -40÷65 °C |
| FDA approve | Yes | Yes | – | YES |
Part of the Movex 552 series
- 552 Flat Top one track belt
- 552 Flat Top
- 552 GT
- 552 PT One Track Belt
- 552 Grip Top Side Indent
- 552 Flat Top Transfer
