551 PRO Low Back Pressure – P5239
551 PRO Low Back Pressure – P5239
Series: 551
Brand: Movex – Italy
Basic Features
- Pitch: 25.4mm
- Thickness:: 12.7mm
- Surface Type: LBP – Low Back Pressure
- Functionality: Straight
- Temperature range dry: -40÷80 °C
- Material: LFA – Low friction acetal, PFX Roller
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty

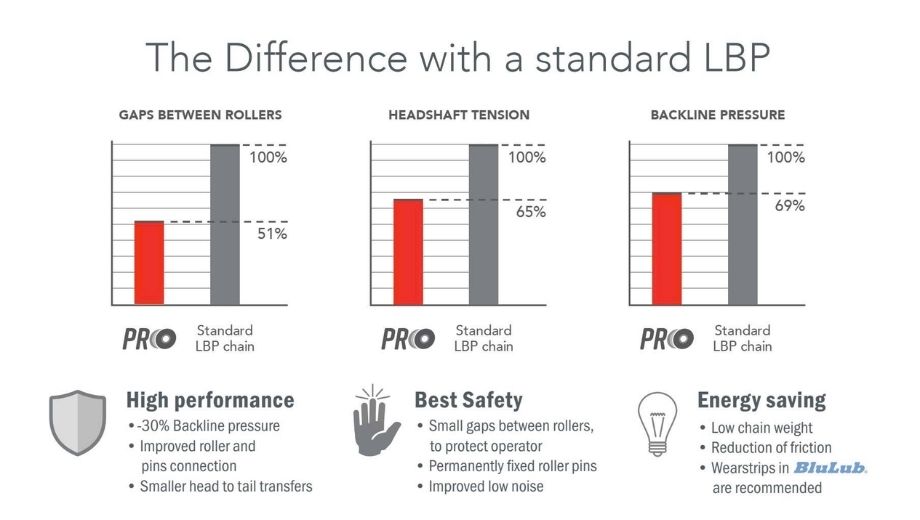

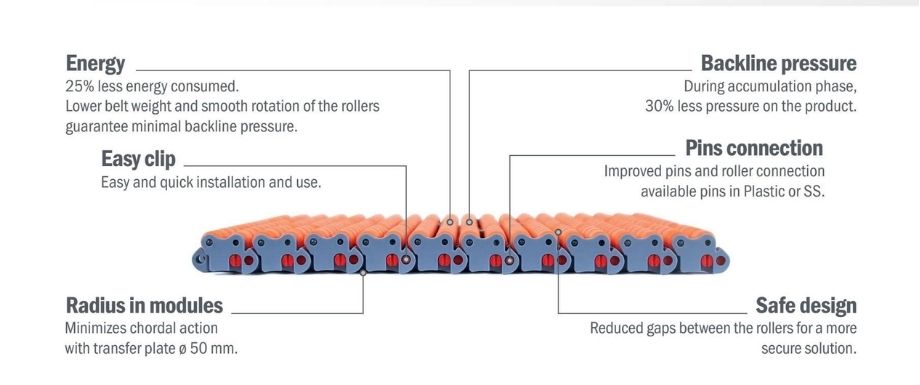

Features

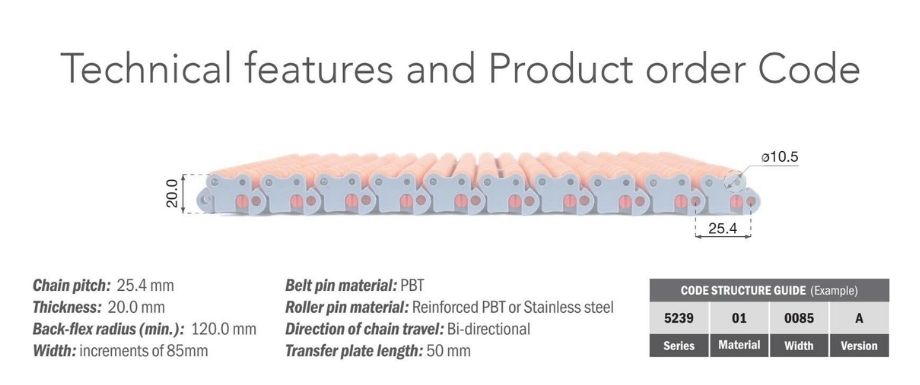

Specifications
| Product code | Product name | Material | Version | Pin material | Part | Max working load | Rod material |
| P5239010085A | LFA 551 PRO LBP 85 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010085B | LFA 551 PRO LBP 85 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010085C | LFA 551 PRO LBP 85 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010170A | LFA 551 PRO LBP 170 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010170B | LFA 551 PRO LBP 170 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010170C | LFA 551 PRO LBP 170 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010255A | LFA 551 PRO LBP 255 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010255B | LFA 551 PRO LBP 255 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010255C | LFA 551 PRO LBP 255 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010340A | LFA 551 PRO LBP 340 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010340B | LFA 551 PRO LBP 340 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010340C | LFA 551 PRO LBP 340 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010425A | LFA 551 PRO LBP 425 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010425B | LFA 551 PRO LBP 425 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010425C | LFA 551 PRO LBP 425 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010510A | LFA 551 PRO LBP 510 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010510B | LFA 551 PRO LBP 510 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010510C | LFA 551 PRO LBP 510 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010595A | LFA 551 PRO LBP 595 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010595B | LFA 551 PRO LBP 595 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010595C | LFA 551 PRO LBP 595 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010680A | LFA 551 PRO LBP 680 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010680B | LFA 551 PRO LBP 680 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010680C | LFA 551 PRO LBP 680 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010765A | LFA 551 PRO LBP 765 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010765B | LFA 551 PRO LBP 765 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010765C | LFA 551 PRO LBP 765 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010850A | LFA 551 PRO LBP 850 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010850B | LFA 551 PRO LBP 850 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010850C | LFA 551 PRO LBP 850 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010935A | LFA 551 PRO LBP 935 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010935B | LFA 551 PRO LBP 935 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239010935C | LFA 551 PRO LBP 935 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011020A | LFA 551 PRO LBP 1020 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011020B | LFA 551 PRO LBP 1020 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011020C | LFA 551 PRO LBP 1020 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011105A | LFA 551 PRO LBP 1105 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011105B | LFA 551 PRO LBP 1105 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011105C | LFA 551 PRO LBP 1105 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011190A | LFA 551 PRO LBP 1190 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011190B | LFA 551 PRO LBP 1190 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011190C | LFA 551 PRO LBP 1190 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011275A | LFA 551 PRO LBP 1275 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011275B | LFA 551 PRO LBP 1275 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011275C | LFA 551 PRO LBP 1275 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011360A | LFA 551 PRO LBP 1360 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011360B | LFA 551 PRO LBP 1360 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011360C | LFA 551 PRO LBP 1360 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011445A | LFA 551 PRO LBP 1445 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011445B | LFA 551 PRO LBP 1445 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011445C | LFA 551 PRO LBP 1445 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011530A | LFA 551 PRO LBP 1530 mm | LFA | A | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011530B | LFA 551 PRO LBP 1530 mm | LFA | B | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5239011530C | LFA 551 PRO LBP 1530 mm | LFA | C | Stainless steel | P5239 | 41500 N/m | PBT white |
| P5240010085A | LFA 551 PRO LBP 85 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010085B | LFA 551 PRO LBP 85 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010085C | LFA 551 PRO LBP 85 mm ( | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010170A | LFA 551 PRO LBP 170 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010170B | LFA 551 PRO LBP 170 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010170C | LFA 551 PRO LBP 170 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010255A | LFA 551 PRO LBP 255 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010255B | LFA 551 PRO LBP 255 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010255C | LFA 551 PRO LBP 255 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010340A | LFA 551 PRO LBP 340 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010340B | LFA 551 PRO LBP 340 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010340C | LFA 551 PRO LBP 340 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010425A | LFA 551 PRO LBP 425 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010425B | LFA 551 PRO LBP 425 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010425C | LFA 551 PRO LBP 425 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010510A | LFA 551 PRO LBP 510 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010510B | LFA 551 PRO LBP 510 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010510C | LFA 551 PRO LBP 510 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010595A | LFA 551 PRO LBP 595 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010595B | LFA 551 PRO LBP 595 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010595C | LFA 551 PRO LBP 595 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010680A | LFA 551 PRO LBP 680 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010680B | LFA 551 PRO LBP 680 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010680C | LFA 551 PRO LBP 680 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010765A | LFA 551 PRO LBP 765 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010765B | LFA 551 PRO LBP 765 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010765C | LFA 551 PRO LBP 765 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010850A | LFA 551 PRO LBP 850 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010850B | LFA 551 PRO LBP 850 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010850C | LFA 551 PRO LBP 850 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010935A | LFA 551 PRO LBP 935 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010935B | LFA 551 PRO LBP 935 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240010935C | LFA 551 PRO LBP 935 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011020A | LFA 551 PRO LBP 1020 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011020B | LFA 551 PRO LBP 1020 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011020C | LFA 551 PRO LBP 1020 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011105A | LFA 551 PRO LBP 1105 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011105B | LFA 551 PRO LBP 1105 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011105C | LFA 551 PRO LBP 1105 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011190A | LFA 551 PRO LBP 1190 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011190B | LFA 551 PRO LBP 1190 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011190C | LFA 551 PRO LBP 1190 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011275A | LFA 551 PRO LBP 1275 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011275B | LFA 551 PRO LBP 1275 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011275C | LFA 551 PRO LBP 1275 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011360A | LFA 551 PRO LBP 1360 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011360B | LFA 551 PRO LBP 1360 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011360C | LFA 551 PRO LBP 1360 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011445A | LFA 551 PRO LBP 1445 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011445B | LFA 551 PRO LBP 1445 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011445C | LFA 551 PRO LBP 1445 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011530A | LFA 551 PRO LBP 1530 mm | LFA | A | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011530B | LFA 551 PRO LBP 1530 mm | LFA | B | Plastic | P5240 | 41500 N/m | PBT white |
| P5240011530C | LFA 551 PRO LBP 1530 mm | LFA | C | Plastic | P5240 | 41500 N/m | PBT white |
*Material
| LFG – Code 27 Low friction Acetal |
|
| Max w. load: | 41500 N/m |
| Weight SS pin: | 13,8 kg/m2 |
| Weight Plastic pin: | 11,0 kg/m2 |
| Temp. range dry: | -40÷80 °C |
| Temp. range wet: | -40÷65 °C |
| Pin material: | PBT white |
Part of the Movex 551 series
- 551 Flat Top
- 551 Grip Top
- 551 FT Transfer
- 551 GT side Indent
- 551 Low Back Pressure
