551 Flat Top – P5231

Series: 551

Basic Features

  • Pitch: 25.4mm
  • Thickness: 12.7mm
  • Surface Type: FT – Flat Top
  • Functionality: Straight
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
  • Nationwide Delivery
  • Technical Waranty

Specifications

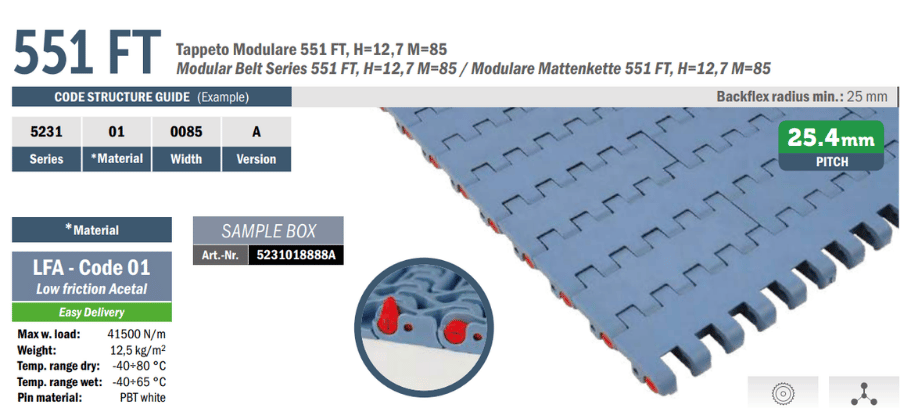

Movex 551 Flat Top
Movex 551 Flat Top
Product code Product name Material Version Pin material Part Max working load Mass
P5231010085A LFA 551 FT 85 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010170A LFA 551 FT 170 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010255A LFA 551 FT 255 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010340A LFA 551 FT 340 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010425A LFA 551 FT 425 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010510A LFA 551 FT 510 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010595A LFA 551 FT 595 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010680A LFA 551 FT 680 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010765A LFA 551 FT 765 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010850A LFA 551 FT 850 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010935A LFA 551 FT 935 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011020A LFA 551 FT 1020 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011105A LFA 551 FT 1105 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011190A LFA 551 FT 1190 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011275A LFA 551 FT 1275 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011360A LFA 551 FT 1360 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011445A LFA 551 FT 1445 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011530A LFA 551 FT 1530 mm LFA A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010085B LFA 551 FT 85 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010170B LFA 551 FT 170 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010255B LFA 551 FT 255 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010340B LFA 551 FT 340 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010425B LFA 551 FT 425 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010510B LFA 551 FT 510 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010595B LFA 551 FT 595 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010680B LFA 551 FT 680 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010765B LFA 551 FT 765 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010850B LFA 551 FT 850 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010935B LFA 551 FT 935 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011020B LFA 551 FT 1020 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011105B LFA 551 FT 1105 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011190B LFA 551 FT 1190 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011275B LFA 551 FT 1275 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011360B LFA 551 FT 1360 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011445B LFA 551 FT 1445 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011530B LFA 551 FT 1530 mm LFA B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010085C LFA 551 FT 85 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010170C LFA 551 FT 170 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010255C LFA 551 FT 255 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010340C LFA 551 FT 340 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010425C LFA 551 FT 425 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010510C LFA 551 FT 510 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010595C LFA 551 FT 595 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010680C LFA 551 FT 680 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010765C LFA 551 FT 765 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010850C LFA 551 FT 850 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231010935C LFA 551 FT 935 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011020C LFA 551 FT 1020 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011105C LFA 551 FT 1105 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011190C LFA 551 FT 1190 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011275C LFA 551 FT 1275 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011360C LFA 551 FT 1360 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011445C LFA 551 FT 1445 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231011530C LFA 551 FT 1530 mm LFA C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231030085A MX 551 FT 85 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030170A MX 551 FT 170 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030255A MX 551 FT 255 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030340A MX 551 FT 340 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030425A MX 551 FT 425 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030510A MX 551 FT 510 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030595A MX 551 FT 595 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030680A MX 551 FT 680 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030765A MX 551 FT 765 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030850A MX 551 FT 850 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030935A MX 551 FT 935 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231031020A MX 551 FT 1020 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231031105A MX 551 FT 1105 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231031190A MX 551 FT 1190 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231031275A MX 551 FT 1275 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231031360A MX 551 FT 1360 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231031445A MX 551 FT 1445 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231031530A MX 551 FT 1530 mm MX A POM grey P5231 33500 N/m 12 kg/m^2
P5231030085B MX 551 FT 85 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030170B MX 551 FT 170 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030255B MX 551 FT 255 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030340B MX 551 FT 340 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030425B MX 551 FT 425 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030510B MX 551 FT 510 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030595B MX 551 FT 595 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030680B MX 551 FT 680 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030765B MX 551 FT 765 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030850B MX 551 FT 850 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030935B MX 551 FT 935 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231031020B MX 551 FT 1020 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231031105B MX 551 FT 1105 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231031190B MX 551 FT 1190 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231031275B MX 551 FT 1275 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231031360B MX 551 FT 1360 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231031445B MX 551 FT 1445 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231031530B MX 551 FT 1530 mm MX B POM grey P5231 33500 N/m 12 kg/m^2
P5231030085C MX 551 FT 85 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231030170C MX 551 FT 170 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231030255C MX 551 FT 255 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231030340C MX 551 FT 340 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231030425C MX 551 FT 425 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231030510C MX 551 FT 510 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231030595C MX 551 FT 595 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231030680C MX 551 FT 680 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231030765C MX 551 FT 765 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231030850C MX 551 FT 850 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231030935C MX 551 FT 935 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231031020C MX 551 FT 1020 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231031105C MX 551 FT 1105 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231031190C MX 551 FT 1190 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231031275C MX 551 FT 1275 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231031360C MX 551 FT 1360 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231031445C MX 551 FT 1445 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231031530C MX 551 FT 1530 mm MX C POM grey P5231 33500 N/m 12 kg/m^2
P5231020085A PP 551 FT 85 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020170A PP 551 FT 170 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020255A PP 551 FT 255 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020340A PP 551 FT 340 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020425A PP 551 FT 425 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020510A PP 551 FT 510 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020595A PP 551 FT 595 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020680A PP 551 FT 680 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020765A PP 551 FT 765 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020850A PP 551 FT 850 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020935A PP 551 FT 935 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231021020A PP 551 FT 1020 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231021105A PP 551 FT 1105 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231021190A PP 551 FT 1190 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231021275A PP 551 FT 1275 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231021360A PP 551 FT 1360 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231021445A PP 551 FT 1445 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231021530A PP 551 FT 1530 mm PP A PP Blue P5231 27000 N/m 10 kg/m^2
P5231020085B PP 551 FT 85 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020170B PP 551 FT 170 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020255B PP 551 FT 255 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020340B PP 551 FT 340 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020425B PP 551 FT 425 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020510B PP 551 FT 510 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020595B PP 551 FT 595 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020680B PP 551 FT 680 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020765B PP 551 FT 765 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020850B PP 551 FT 850 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020935B PP 551 FT 935 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231021020B PP 551 FT 1020 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231021105B PP 551 FT 1105 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231021190B PP 551 FT 1190 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231021275B PP 551 FT 1275 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231021360B PP 551 FT 1360 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231021445B PP 551 FT 1445 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231021530B PP 551 FT 1530 mm PP B PP Blue P5231 27000 N/m 10 kg/m^2
P5231020085C PP 551 FT 85 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231020170C PP 551 FT 170 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231020255C PP 551 FT 255 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231020340C PP 551 FT 340 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231020425C PP 551 FT 425 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231020510C PP 551 FT 510 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231020595C PP 551 FT 595 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231020680C PP 551 FT 680 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231020765C PP 551 FT 765 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231020850C PP 551 FT 850 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231020935C PP 551 FT 935 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231021020C PP 551 FT 1020 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231021105C PP 551 FT 1105 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231021190C PP 551 FT 1190 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231021275C PP 551 FT 1275 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231021360C PP 551 FT 1360 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231021445C PP 551 FT 1445 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231021530C PP 551 FT 1530 mm PP C PP Blue P5231 27000 N/m 10 kg/m^2
P5231300085A PFX 551 FT 85 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300170A PFX 551 FT 170 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300255A PFX 551 FT 255 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300340A PFX 551 FT 340 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300425A PFX 551 FT 425 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300510A PFX 551 FT 510 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300595A PFX 551 FT 595 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300680A PFX 551 FT 680 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300765A PFX 551 FT 765 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300850A PFX 551 FT 850 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300935A PFX 551 FT 935 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231301020A PFX 551 FT 1020 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231301105A PFX 551 FT 1105 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231301190A PFX 551 FT 1190 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231301275A PFX 551 FT 1275 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231301360A PFX 551 FT 1360 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231301445A PFX 551 FT 1445 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231301530A PFX 551 FT 1530 mm PFX A POM grey P5231 33500 N/m 12 kg/m^2
P5231300085B PFX 551 FT 85 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300170B PFX 551 FT 170 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300255B PFX 551 FT 255 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300340B PFX 551 FT 340 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300425B PFX 551 FT 425 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300510B PFX 551 FT 510 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300595B PFX 551 FT 595 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300680B PFX 551 FT 680 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300765B PFX 551 FT 765 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300850B PFX 551 FT 850 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300935B PFX 551 FT 935 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231301020B PFX 551 FT 1020 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231301105B PFX 551 FT 1105 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231301190B PFX 551 FT 1190 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231301275B PFX 551 FT 1275 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231301360B PFX 551 FT 1360 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231301445B PFX 551 FT 1445 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231301530B PFX 551 FT 1530 mm PFX B POM grey P5231 33500 N/m 12 kg/m^2
P5231300085C PFX 551 FT 85 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231300170C PFX 551 FT 170 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231300255C PFX 551 FT 255 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231300340C PFX 551 FT 340 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231300425C PFX 551 FT 425 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231300510C PFX 551 FT 510 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231300595C PFX 551 FT 595 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231300680C PFX 551 FT 680 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231300765C PFX 551 FT 765 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231300850C PFX 551 FT 850 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231300935C PFX 551 FT 935 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231301020C PFX 551 FT 1020 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231301105C PFX 551 FT 1105 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231301190C PFX 551 FT 1190 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231301275C PFX 551 FT 1275 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231301360C PFX 551 FT 1360 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231301445C PFX 551 FT 1445 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231301530C PFX 551 FT 1530 mm PFX C POM grey P5231 33500 N/m 12 kg/m^2
P5231160085A DKM 551 FT 85 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160170A DKM 551 FT 170 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160255A DKM 551 FT 255 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160340A DKM 551 FT 340 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160425A DKM 551 FT 425 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160510A DKM 551 FT 510 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160595A DKM 551 FT 595 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160680A DKM 551 FT 680 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160765A DKM 551 FT 765 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160850A DKM 551 FT 850 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160935A DKM 551 FT 935 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161020A DKM 551 FT 1020 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161105A DKM 551 FT 1105 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161190A DKM 551 FT 1190 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161275A DKM 551 FT 1275 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161360A DKM 551 FT 1360 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161445A DKM 551 FT 1445 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161530A DKM 551 FT 1530 mm DKM A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160085B DKM 551 FT 85 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160170B DKM 551 FT 170 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160255B DKM 551 FT 255 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160340B DKM 551 FT 340 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160425B DKM 551 FT 425 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160510B DKM 551 FT 510 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160595B DKM 551 FT 595 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160680B DKM 551 FT 680 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160765B DKM 551 FT 765 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160850B DKM 551 FT 850 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160935B DKM 551 FT 935 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161020B DKM 551 FT 1020 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161105B DKM 551 FT 1105 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161190B DKM 551 FT 1190 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161275B DKM 551 FT 1275 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161360B DKM 551 FT 1360 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161445B DKM 551 FT 1445 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161530B DKM 551 FT 1530 mm DKM B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160085C DKM 551 FT 85 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160170C DKM 551 FT 170 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160255C DKM 551 FT 255 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160340C DKM 551 FT 340 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160425C DKM 551 FT 425 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160510C DKM 551 FT 510 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160595C DKM 551 FT 595 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160680C DKM 551 FT 680 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160765C DKM 551 FT 765 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160850C DKM 551 FT 850 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231160935C DKM 551 FT 935 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161020C DKM 551 FT 1020 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161105C DKM 551 FT 1105 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161190C DKM 551 FT 1190 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161275C DKM 551 FT 1275 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161360C DKM 551 FT 1360 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161445C DKM 551 FT 1445 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231161530C DKM 551 FT 1530 mm DKM C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170085A MWX 551 FT 85 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170170A MWX 551 FT 170 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170255A MWX 551 FT 255 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170340A MWX 551 FT 340 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170425A MWX 551 FT 425 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170510A MWX 551 FT 510 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170595A MWX 551 FT 595 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170680A MWX 551 FT 680 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170765A MWX 551 FT 765 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170850A MWX 551 FT 850 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170935A MWX 551 FT 935 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171020A MWX 551 FT 1020 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171105A MWX 551 FT 1105 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171190A MWX 551 FT 1190 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171275A MWX 551 FT 1275 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171360A MWX 551 FT 1360 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171445A MWX 551 FT 1445 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171530A MWX 551 FT 1530 mm MWX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170085B MWX 551 FT 85 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170170B MWX 551 FT 170 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170255B MWX 551 FT 255 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170340B MWX 551 FT 340 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170425B MWX 551 FT 425 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170510B MWX 551 FT 510 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170595B MWX 551 FT 595 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170680B MWX 551 FT 680 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170765B MWX 551 FT 765 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170850B MWX 551 FT 850 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170935B MWX 551 FT 935 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171020B MWX 551 FT 1020 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171105B MWX 551 FT 1105 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171190B MWX 551 FT 1190 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171275B MWX 551 FT 1275 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171360B MWX 551 FT 1360 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171445B MWX 551 FT 1445 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171530B MWX 551 FT 1530 mm MWX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170085C MWX 551 FT 85 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170170C MWX 551 FT 170 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170255C MWX 551 FT 255 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170340C MWX 551 FT 340 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170425C MWX 551 FT 425 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170510C MWX 551 FT 510 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170595C MWX 551 FT 595 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170680C MWX 551 FT 680 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170765C MWX 551 FT 765 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170850C MWX 551 FT 850 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231170935C MWX 551 FT 935 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171020C MWX 551 FT 1020 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171105C MWX 551 FT 1105 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171190C MWX 551 FT 1190 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171275C MWX 551 FT 1275 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171360C MWX 551 FT 1360 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171445C MWX 551 FT 1445 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231171530C MWX 551 FT 1530 mm MWX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250085A MPX 551 FT 85 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250170A MPX 551 FT 170 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250255A MPX 551 FT 255 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250340A MPX 551 FT 340 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250425A MPX 551 FT 425 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250510A MPX 551 FT 510 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250595A MPX 551 FT 595 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250680A MPX 551 FT 680 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250765A MPX 551 FT 765 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250850A MPX 551 FT 850 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250935A MPX 551 FT 935 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251020A MPX 551 FT 1020 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251105A MPX 551 FT 1105 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251190A MPX 551 FT 1190 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251275A MPX 551 FT 1275 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251360A MPX 551 FT 1360 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251445A MPX 551 FT 1445 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251530A MPX 551 FT 1530 mm MPX A PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250085B MPX 551 FT 85 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250170B MPX 551 FT 170 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250255B MPX 551 FT 255 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250340B MPX 551 FT 340 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250425B MPX 551 FT 425 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250510B MPX 551 FT 510 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250595B MPX 551 FT 595 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250680B MPX 551 FT 680 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250765B MPX 551 FT 765 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250850B MPX 551 FT 850 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250935B MPX 551 FT 935 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251020B MPX 551 FT 1020 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251105B MPX 551 FT 1105 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251190B MPX 551 FT 1190 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251275B MPX 551 FT 1275 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251360B MPX 551 FT 1360 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251445B MPX 551 FT 1445 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251530B MPX 551 FT 1530 mm MPX B PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250085C MPX 551 FT 85 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250170C MPX 551 FT 170 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250255C MPX 551 FT 255 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250340C MPX 551 FT 340 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250425C MPX 551 FT 425 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250510C MPX 551 FT 510 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250595C MPX 551 FT 595 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250680C MPX 551 FT 680 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250765C MPX 551 FT 765 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250850C MPX 551 FT 850 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231250935C MPX 551 FT 935 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251020C MPX 551 FT 1020 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251105C MPX 551 FT 1105 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251190C MPX 551 FT 1190 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251275C MPX 551 FT 1275 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251360C MPX 551 FT 1360 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251445C MPX 551 FT 1445 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2
P5231251530C MPX 551 FT 1530 mm MPX C PBT white P5231 41500 N/m 12.5 kg/m^2

* Materials

Material LFA – Low friction acetal MX – Performance PBT PFX – Performance PBT MPX – Lubricated acetal DKM – Reinforced acetal PP – Polypropylene MWX – Polyamid Composite
Color Cyan Black Orange Grey Black Grey Black
Temp. range dry -40÷80 °C -40÷120 °C -40÷120 °C -40÷80 °C -40÷80 °C 4÷104 °C -40÷104 °C
Temp. range wet -40÷65 °C -40÷60 °C -40÷60 °C -40÷65 °C -40÷65 °C 4÷104 °C NO
FDA approve Yes Yes Yes YES – YES –

Part of the Movex 551 series

  • 551 Flat Top Transfer
  • 551 Grip Top
  • 551 Grip Top Side Indent
  • 551 Low Back Pressure
  • 551 PRO Low Back Pressure



View more

Straight

Modular





Document

pdf

Movex_SS-Pins-for-Modular-Belts

pdf

Movex_PFX_ENG

pdf

Movex_MX_ENG

Request a quote




Product

CATEGORY

Product relate

mhptechnique

590 split machined sprocket

mhptechnique

556 machined sprocket

mhptechnique

553 split machined sprocket

mhptechnique

553 one-piece molded sprocket

mhptechnique

552 split machined sprocket

mhptechnique

551 molded sprocket

Viewed products

mhptechnique

Guide rail Part 142

mhptechnique

Guide rail Part 184

mhptechnique

551 Flat Top – P5231

mhptechnique

552 Flat Top – P5341

mhptechnique

520 Flush Grid

mhptechnique

7233 Flush Grid – F7233

mhp
LINKS
RECEIVE INFORMATION

Contact MHP to receive information

Office & Warehouse
Headquarter
MHP TECHNIQUE CO., LTD 2022 I | All Rights Reserved
