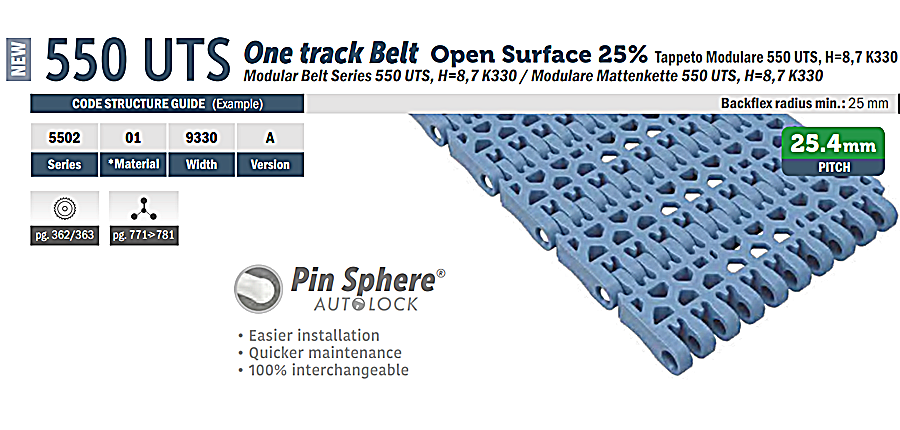

550 Ultimate Top System One track Belt – P5502
550 Ultimate Top System One track Belt – P5502
Series: 550
Brand: Movex – Italy
Basic Features
- Pitch: 25.4mm
- Thickness: 8.7mm
- Surface Type: FG – Flush Grid, FT – Flush Grid
- Functionality: Straight
- Temperature range dry: -40÷80 °C
- Material: LFA, MX, PFX, LFB
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Specifications
| Product code | Product name | Material | Version | Pin material | Part | Max working load | Mass |
| P5502019330A | LFA 550 UTS OTB 3,30″ (83,82 mm) | LFA | A | PBT white | P5502 | – | 7 kg/m^2 |
| P5502019330C | LFA 550 UTS OTB 3,30″ (83,82 mm) | LFA | C | PBT white | P5502 | – | 7 kg/m^2 |
| P5502039330A | MX 550 UTS OTB 3,30″ (83,82 mm) | MX | A | POM grey | P5502 | – | 6.7 kg/m^2 |
| P5502039330C | MX 550 UTS OTB 3,30″ (83,82 mm) | MX | C | POM grey | P5502 | – | 6.7 kg/m^2 |
| P5502309330A | PFX 550 UTS OTB 3,30″ (83,82 mm) | PFX | A | POM grey | P5502 | – | 6.7 kg/m^2 |
| P5502309330C | PFX 550 UTS OTB 3,30″ (83,82 mm) | PFX | C | POM grey | P5502 | – | 6.7 kg/m^2 |
| P5502239330A | LFB 550 UTS OTB 3,30″ (83,82 mm) | LFB | A | PBT white | P5502 | – | 7 kg/m^2 |
| P5502239330C | LFB 550 UTS OTB 3,30″ (83,82 mm) | LFB | C | PBT white | P5502 | – | 7 kg/m^2 |
*Material
| Material | LFA – Low friction acetal | LFB – Low friction acetal | MX – Performance PBT | PFX – Performance PBT |
| Color | Cyan | Blue | Black | Orange |
| Temp. range dry: | -40÷80 °C | -40÷80 °C | -40÷120 °C | -40÷120 °C |
| Temp. range wet: | -40÷65 °C | -40÷65 °C | -40÷60 °C | -40÷60 °C |
| FDA approve | Yes | Yes | Yes | Yes |
Part of the Movex 550 series
- 550 Flight Top
- 550 Flat Top
- 550 Flat Top one track belt
- 550 Flat Top transfer
- 550 Ultimate Top System
- 550 Grip Top
- 550 Grip Top Side Indent
- 550 Vacuum
- 550 Vacuum one track belt
- 550 PRO Flat Top
- 550 mini Raised Rib
