550 Grip Top Side Indent – P5505

Series: 550

Brand: Movex – Italy

Basic Features

  • Pitch: 25.4mm
  • Thickness: 8.7mm
  • Surface Type: GT – Grip Top
  • Functionality: Straight
  • Temperature range dry: -40÷120 °C
  • Material: LFA, MX, PP
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
  • Nationwide Delivery
  • Technical Waranty

Specifications

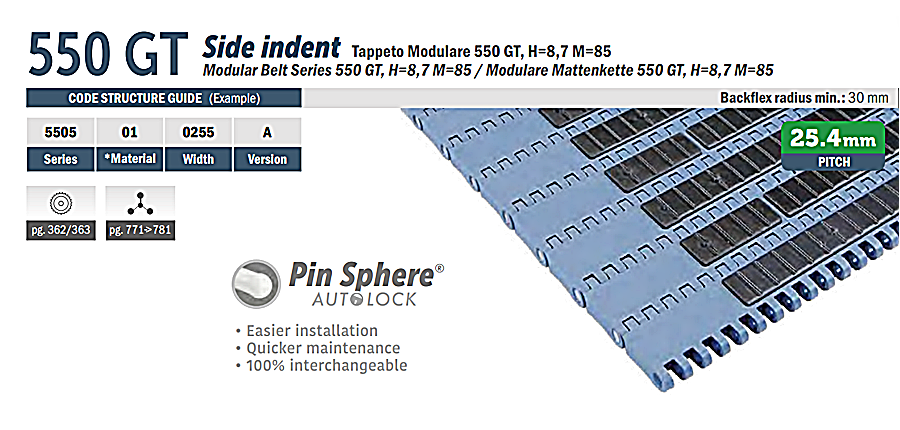

Movex 550 GRip Top Side Indent
Movex 550 GRip Top Side Indent
Product code Product name Material Version Pin material Part Max working load Mass
P5505010255A LFA 550 GT Side Indent 255 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010340A LFA 550 GT Side Indent 340 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010425A LFA 550 GT Side Indent 425 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010510A LFA 550 GT Side Indent 510 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010595A LFA 550 GT Side Indent 595 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010680A LFA 550 GT Side Indent 680 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010765A LFA 550 GT Side Indent 765 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010850A LFA 550 GT Side Indent 850 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010935A LFA 550 GT Side Indent 935 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011020A LFA 550 GT Side Indent 1020 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011105A LFA 550 GT Side Indent 1105 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011190A LFA 550 GT Side Indent 1190 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011275A LFA 550 GT Side Indent 1275 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011360A LFA 550 GT Side Indent 1360 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011445A LFA 550 GT Side Indent 1445 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011530A LFA 550 GT Side Indent 1530 mm LFA A PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010255B LFA 550 GT Side Indent 255 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010340B LFA 550 GT Side Indent 340 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010425B LFA 550 GT Side Indent 425 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010510B LFA 550 GT Side Indent 510 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010595B LFA 550 GT Side Indent 595 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010680B LFA 550 GT Side Indent 680 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010765B LFA 550 GT Side Indent 765 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010850B LFA 550 GT Side Indent 850 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010935B LFA 550 GT Side Indent 935 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011020B LFA 550 GT Side Indent 1020 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011105B LFA 550 GT Side Indent 1105 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011190B LFA 550 GT Side Indent 1190 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011275B LFA 550 GT Side Indent 1275 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011360B LFA 550 GT Side Indent 1360 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011445B LFA 550 GT Side Indent 1445 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011530B LFA 550 GT Side Indent 1530 mm LFA B PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010255C LFA 550 GT Side Indent 255 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010340C LFA 550 GT Side Indent 340 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010425C LFA 550 GT Side Indent 425 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010510C LFA 550 GT Side Indent 510 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010595C LFA 550 GT Side Indent 595 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010680C LFA 550 GT Side Indent 680 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010765C LFA 550 GT Side Indent 765 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010850C LFA 550 GT Side Indent 850 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505010935C LFA 550 GT Side Indent 935 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011020C LFA 550 GT Side Indent 1020 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011105C LFA 550 GT Side Indent 1105 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011190C LFA 550 GT Side Indent 1190 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011275C LFA 550 GT Side Indent 1275 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011360C LFA 550 GT Side Indent 1360 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011445C LFA 550 GT Side Indent 1445 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505011530C LFA 550 GT Side Indent 1530 mm LFA C PBT white P5505 27500 N/m 10.1 kg/m^2
P5505030255A MX 550 GT Side Indent 255 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030340A MX 550 GT Side Indent 340 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030425A MX 550 GT Side Indent 425 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030510A MX 550 GT Side Indent 510 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030595A MX 550 GT Side Indent 595 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030680A MX 550 GT Side Indent 680 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030765A MX 550 GT Side Indent 765 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030850A MX 550 GT Side Indent 850 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030935A MX 550 GT Side Indent 935 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031020A MX 550 GT Side Indent 1020 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031105A MX 550 GT Side Indent 1105 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031190A MX 550 GT Side Indent 1190 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031275A MX 550 GT Side Indent 1275 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031360A MX 550 GT Side Indent 1360 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031445A MX 550 GT Side Indent 1445 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031530A MX 550 GT Side Indent 1530 mm MX A POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030255B MX 550 GT Side Indent 255 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030340B MX 550 GT Side Indent 340 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030425B MX 550 GT Side Indent 425 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030510B MX 550 GT Side Indent 510 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030595B MX 550 GT Side Indent 595 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030680B MX 550 GT Side Indent 680 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030765B MX 550 GT Side Indent 765 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030850B MX 550 GT Side Indent 850 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030935B MX 550 GT Side Indent 935 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031020B MX 550 GT Side Indent 1020 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031105B MX 550 GT Side Indent 1105 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031190B MX 550 GT Side Indent 1190 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031275B MX 550 GT Side Indent 1275 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031360B MX 550 GT Side Indent 1360 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031445B MX 550 GT Side Indent 1445 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031530B MX 550 GT Side Indent 1530 mm MX B POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030255C MX 550 GT Side Indent 255 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030340C MX 550 GT Side Indent 340 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030425C MX 550 GT Side Indent 425 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030510C MX 550 GT Side Indent 510 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030595C MX 550 GT Side Indent 595 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030680C MX 550 GT Side Indent 680 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030765C MX 550 GT Side Indent 765 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030850C MX 550 GT Side Indent 850 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505030935C MX 550 GT Side Indent 935 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031020C MX 550 GT Side Indent 1020 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031105C MX 550 GT Side Indent 1105 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031190C MX 550 GT Side Indent 1190 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031275C MX 550 GT Side Indent 1275 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031360C MX 550 GT Side Indent 1360 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031445C MX 550 GT Side Indent 1445 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505031530C MX 550 GT Side Indent 1530 mm MX C POM grey P5505 21500 N/m 10.5 kg/m^2
P5505230255A PP 550 GT Side Indent 255 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505230340A PP 550 GT Side Indent 340 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505230425A PP 550 GT Side Indent 425 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505230510A PP 550 GT Side Indent 510 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505230595A PP 550 GT Side Indent 595 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505230680A PP 550 GT Side Indent 680 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505230765A PP 550 GT Side Indent 765 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505230850A PP 550 GT Side Indent 850 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505230935A PP 550 GT Side Indent 935 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505231020A PP 550 GT Side Indent 1020 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505231105A PP 550 GT Side Indent 1105 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505231190A PP 550 GT Side Indent 1190 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505231275A PP 550 GT Side Indent 1275 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505231360A PP 550 GT Side Indent 1360 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505231445A PP 550 GT Side Indent 1445 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505231530A PP 550 GT Side Indent 1530 mm PP A PP Blue P5505 16500 N/m 7 kg/m^2
P5505230255B PP 550 GT Side Indent 255 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505230340B PP 550 GT Side Indent 340 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505230425B PP 550 GT Side Indent 425 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505230510B PP 550 GT Side Indent 510 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505230595B PP 550 GT Side Indent 595 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505230680B PP 550 GT Side Indent 680 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505230765B PP 550 GT Side Indent 765 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505230850B PP 550 GT Side Indent 850 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505230935B PP 550 GT Side Indent 935 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505231020B PP 550 GT Side Indent 1020 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505231105B PP 550 GT Side Indent 1105 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505231190B PP 550 GT Side Indent 1190 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505231275B PP 550 GT Side Indent 1275 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505231360B PP 550 GT Side Indent 1360 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505231445B PP 550 GT Side Indent 1445 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505231530B PP 550 GT Side Indent 1530 mm PP B PP Blue P5505 16500 N/m 7 kg/m^2
P5505230255C PP 550 GT Side Indent 255 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505230340C PP 550 GT Side Indent 340 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505230425C PP 550 GT Side Indent 425 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505230510C PP 550 GT Side Indent 510 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505230595C PP 550 GT Side Indent 595 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505230680C PP 550 GT Side Indent 680 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505230765C PP 550 GT Side Indent 765 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505230850C PP 550 GT Side Indent 850 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505230935C PP 550 GT Side Indent 935 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505231020C PP 550 GT Side Indent 1020 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505231105C PP 550 GT Side Indent 1105 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505231190C PP 550 GT Side Indent 1190 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505231275C PP 550 GT Side Indent 1275 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505231360C PP 550 GT Side Indent 1360 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505231445C PP 550 GT Side Indent 1445 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2
P5505231530C PP 550 GT Side Indent 1530 mm PP C PP Blue P5505 16500 N/m 7 kg/m^2

*Material

Material LFA – Low friction acetal MX – Performance PBT PP – Polypropylene
Color Cyan Black Grey
Temp. range dry: -40÷80 °C -40÷120 °C 4÷104 °C
Temp. range wet: -40÷65 °C -40÷60 °C 4÷104 °C
FDA approve Yes Yes YES

Part of the Movex 550 series

  • 550 Flight Top
  • 550 PRO Magnetic
  • 550 Flat Top one track belt
  • 550 Flat Top transfer
  • 550 Ultimate Top System
  • 550 Ultimate Top System one track belt
  • 550 V OTB
  • 550 Grip Top Side Indent
  • 550 FT
  • 550 Vacuum
  • 550 PRO Flat Top
  • 550 mini Raised Rib



View more

Modular Belt

Straight



Document

pdf

Movex MX_ENG

Request a quote




Product

CATEGORY

Product relate

mhptechnique

590 split machined sprocket

mhptechnique

556 machined sprocket

mhptechnique

553 split machined sprocket

mhptechnique

553 one-piece molded sprocket

mhptechnique

552 split machined sprocket

mhptechnique

551 molded sprocket

Viewed products

mhptechnique

550 Grip Top Side Indent – P5505

mhp
LINKS
RECEIVE INFORMATION

Contact MHP to receive information

Office & Warehouse
Headquarter
MHP TECHNIQUE CO., LTD 2022 I | All Rights Reserved
