520 Flush Grid

Series: 520

Basic Features

  • Pitch: 25.4mm
  • Thickness: 8.7mm
  • Surface Type: Flush Grib
  • Functionality: Straight
  • Temperature range dry: -40÷104 °C
  • Material: LFA, PFX, MX, MPX, MWX, PP, DKM
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
  • Nationwide Delivery
  • Technical Waranty

Specifications

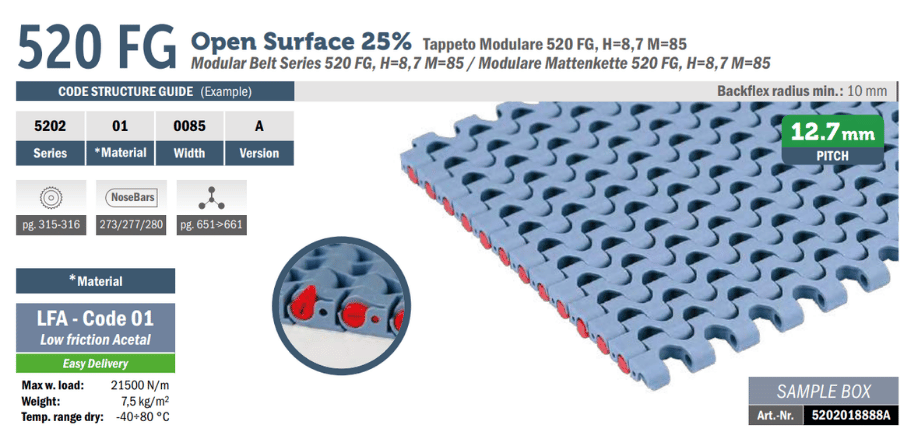

Movex 520 FG
Movex 520 FG
Product code Product name Material Version Pin material Part Max working load Mass
P5202010085A LFA 520 FG 85 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010170A LFA 520 FG 170 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010255A LFA 520 FG 255 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010340A LFA 520 FG 340 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010425A LFA 520 FG 425 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010510A LFA 520 FG 510 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010595A LFA 520 FG 595 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010680A LFA 520 FG 680 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010765A LFA 520 FG 765 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010850A LFA 520 FG 850 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010935A LFA 520 FG 935 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011020A LFA 520 FG 1020 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011105A LFA 520 FG 1105 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011190A LFA 520 FG 1190 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011275A LFA 520 FG 1275 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011360A LFA 520 FG 1360 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011445A LFA 520 FG 1445 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011530A LFA 520 FG 1530 mm LFA A PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010085B LFA 520 FG 85 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010170B LFA 520 FG 170 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010255B LFA 520 FG 255 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010340B LFA 520 FG 340 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010425B LFA 520 FG 425 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010510B LFA 520 FG 510 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010595B LFA 520 FG 595 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010680B LFA 520 FG 680 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010765B LFA 520 FG 765 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010850B LFA 520 FG 850 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010935B LFA 520 FG 935 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011020B LFA 520 FG 1020 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011105B LFA 520 FG 1105 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011190B LFA 520 FG 1190 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011275B LFA 520 FG 1275 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011360B LFA 520 FG 1360 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011445B LFA 520 FG 1445 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011530B LFA 520 FG 1530 mm LFA B PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010085C LFA 520 FG 85 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010170C LFA 520 FG 170 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010255C LFA 520 FG 255 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010340C LFA 520 FG 340 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010425C LFA 520 FG 425 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010510C LFA 520 FG 510 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010595C LFA 520 FG 595 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010680C LFA 520 FG 680 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010765C LFA 520 FG 765 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010850C LFA 520 FG 850 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202010935C LFA 520 FG 935 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011020C LFA 520 FG 1020 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011105C LFA 520 FG 1105 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011190C LFA 520 FG 1190 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011275C LFA 520 FG 1275 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011360C LFA 520 FG 1360 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011445C LFA 520 FG 1445 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202011530C LFA 520 FG 1530 mm LFA C PBT white P5202  21500 N/m 7.5 kg/m^2
P5202030085A MX 520 FG 85 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030170A MX 520 FG 170 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030255A MX 520 FG 255 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030340A MX 520 FG 340 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030425A MX 520 FG 425 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030510A MX 520 FG 510 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030595A MX 520 FG 595 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030680A MX 520 FG 680 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030765A MX 520 FG 765 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030850A MX 520 FG 850 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030935A MX 520 FG 935 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031020A MX 520 FG 1020 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031105A MX 520 FG 1105 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031190A MX 520 FG 1190 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031275A MX 520 FG 1275 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031360A MX 520 FG 1360 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031445A MX 520 FG 1445 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031530A MX 520 FG 1530 mm MX A POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030085B MX 520 FG 85 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030170B MX 520 FG 170 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030255B MX 520 FG 255 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030340B MX 520 FG 340 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030425B MX 520 FG 425 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030510B MX 520 FG 510 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030595B MX 520 FG 595 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030680B MX 520 FG 680 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030765B MX 520 FG 765 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030850B MX 520 FG 850 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030935B MX 520 FG 935 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031020B MX 520 FG 1020 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031105B MX 520 FG 1105 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031190B MX 520 FG 1190 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031275B MX 520 FG 1275 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031360B MX 520 FG 1360 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031445B MX 520 FG 1445 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031530B MX 520 FG 1530 mm MX B POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030085C MX 520 FG 85 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030170C MX 520 FG 170 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030255C MX 520 FG 255 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030340C MX 520 FG 340 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030425C MX 520 FG 425 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030510C MX 520 FG 510 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030595C MX 520 FG 595 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030680C MX 520 FG 680 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030765C MX 520 FG 765 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030850C MX 520 FG 850 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202030935C MX 520 FG 935 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031020C MX 520 FG 1020 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031105C MX 520 FG 1105 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031190C MX 520 FG 1190 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031275C MX 520 FG 1275 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031360C MX 520 FG 1360 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031445C MX 520 FG 1445 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202031530C MX 520 FG 1530 mm MX C POM grey P5202 17500 N/m  7.2 kg/m^2
P5202020085A PP 520 FG 85 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020170A PP 520 FG 170 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020255A PP 520 FG 255 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020340A PP 520 FG 340 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020425A PP 520 FG 425 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020510A PP 520 FG 510 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020595A PP 520 FG 595 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020680A PP 520 FG 680 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020765A PP 520 FG 765 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020850A PP 520 FG 850 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020935A PP 520 FG 935 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021020A PP 520 FG 1020 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021105A PP 520 FG 1105 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021190A PP 520 FG 1190 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021275A PP 520 FG 1275 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021360A PP 520 FG 1360 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021445A PP 520 FG 1445 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021530A PP 520 FG 1530 mm PP A PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020085B PP 520 FG 85 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020170B PP 520 FG 170 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020255B PP 520 FG 255 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020340B PP 520 FG 340 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020425B PP 520 FG 425 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020510B PP 520 FG 510 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020595B PP 520 FG 595 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020680B PP 520 FG 680 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020765B PP 520 FG 765 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020850B PP 520 FG 850 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020935B PP 520 FG 935 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021020B PP 520 FG 1020 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021105B PP 520 FG 1105 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021190B PP 520 FG 1190 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021275B PP 520 FG 1275 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021360B PP 520 FG 1360 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021445B PP 520 FG 1445 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021530B PP 520 FG 1530 mm PP B PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020085C PP 520 FG 85 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020170C PP 520 FG 170 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020255C PP 520 FG 255 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020340C PP 520 FG 340 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020425C PP 520 FG 425 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020510C PP 520 FG 510 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020595C PP 520 FG 595 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020680C PP 520 FG 680 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020765C PP 520 FG 765 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020850C PP 520 FG 850 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202020935C PP 520 FG 935 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021020C PP 520 FG 1020 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021105C PP 520 FG 1105 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021190C PP 520 FG 1190 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021275C PP 520 FG 1275 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021360C PP 520 FG 1360 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021445C PP 520 FG 1445 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202021530C PP 520 FG 1530 mm PP C PP Blue P5202 13000 N/m 7.5 kg/m^2
P5202250085A MPX 520 FG 85 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250170A MPX 520 FG 170 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250255A MPX 520 FG 255 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250340A MPX 520 FG 340 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250425A MPX 520 FG 425 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250510A MPX 520 FG 510 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250595A MPX 520 FG 595 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250680A MPX 520 FG 680 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250765A MPX 520 FG 765 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250850A MPX 520 FG 850 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250935A MPX 520 FG 935 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251020A MPX 520 FG 1020 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251105A MPX 520 FG 1105 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251190A MPX 520 FG 1190 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251275A MPX 520 FG 1275 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251360A MPX 520 FG 1360 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251445A MPX 520 FG 1445 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251530A MPX 520 FG 1530 mm MPX A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250085B MPX 520 FG 85 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250170B MPX 520 FG 170 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250255B MPX 520 FG 255 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250340B MPX 520 FG 340 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250425B MPX 520 FG 425 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250510B MPX 520 FG 510 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250595B MPX 520 FG 595 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250680B MPX 520 FG 680 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250765B MPX 520 FG 765 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250850B MPX 520 FG 850 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250935B MPX 520 FG 935 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251020B MPX 520 FG 1020 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251105B MPX 520 FG 1105 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251190B MPX 520 FG 1190 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251275B MPX 520 FG 1275 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251360B MPX 520 FG 1360 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251445B MPX 520 FG 1445 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251530B MPX 520 FG 1530 mm MPX B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250085C MPX 520 FG 85 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250170C MPX 520 FG 170 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250255C MPX 520 FG 255 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250340C MPX 520 FG 340 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250425C MPX 520 FG 425 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250510C MPX 520 FG 510 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250595C MPX 520 FG 595 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250680C MPX 520 FG 680 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250765C MPX 520 FG 765 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250850C MPX 520 FG 850 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202250935C MPX 520 FG 935 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251020C MPX 520 FG 1020 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251105C MPX 520 FG 1105 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251190C MPX 520 FG 1190 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251275C MPX 520 FG 1275 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251360C MPX 520 FG 1360 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251445C MPX 520 FG 1445 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202251530C MPX 520 FG 1530 mm MPX C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160085A DKM 520 FG 85 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160170A DKM 520 FG 170 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160255A DKM 520 FG 255 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160340A DKM 520 FG 340 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160425A DKM 520 FG 425 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160510A DKM 520 FG 510 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160595A DKM 520 FG 595 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160680A DKM 520 FG 680 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160765A DKM 520 FG 765 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160850A DKM 520 FG 850 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160935A DKM 520 FG 935 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161020A DKM 520 FG 1020 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161105A DKM 520 FG 1105 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161190A DKM 520 FG 1190 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161275A DKM 520 FG 1275 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161360A DKM 520 FG 1360 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161445A DKM 520 FG 1445 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161530A DKM 520 FG 1530 mm DKM A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160085B DKM 520 FG 85 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160170B DKM 520 FG 170 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160255B DKM 520 FG 255 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160340B DKM 520 FG 340 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160425B DKM 520 FG 425 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160510B DKM 520 FG 510 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160595B DKM 520 FG 595 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160680B DKM 520 FG 680 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160765B DKM 520 FG 765 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160850B DKM 520 FG 850 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160935B DKM 520 FG 935 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161020B DKM 520 FG 1020 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161105B DKM 520 FG 1105 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161190B DKM 520 FG 1190 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161275B DKM 520 FG 1275 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161360B DKM 520 FG 1360 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161445B DKM 520 FG 1445 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161530B DKM 520 FG 1530 mm DKM B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160085C DKM 520 FG 85 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160170C DKM 520 FG 170 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160255C DKM 520 FG 255 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160340C DKM 520 FG 340 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160425C DKM 520 FG 425 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160510C DKM 520 FG 510 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160595C DKM 520 FG 595 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160680C DKM 520 FG 680 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160765C DKM 520 FG 765 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160850C DKM 520 FG 850 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202160935C DKM 520 FG 935 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161020C DKM 520 FG 1020 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161105C DKM 520 FG 1105 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161190C DKM 520 FG 1190 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161275C DKM 520 FG 1275 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161360C DKM 520 FG 1360 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161445C DKM 520 FG 1445 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202161530C DKM 520 FG 1530 mm DKM C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202170085A MWX 520 FG 85 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170170A MWX 520 FG 170 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170255A MWX 520 FG 255 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170340A MWX 520 FG 340 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170425A MWX 520 FG 425 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170510A MWX 520 FG 510 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170595A MWX 520 FG 595 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170680A MWX 520 FG 680 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170765A MWX 520 FG 765 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170850A MWX 520 FG 850 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170935A MWX 520 FG 935 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171020A MWX 520 FG 1020 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171105A MWX 520 FG 1105 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171190A MWX 520 FG 1190 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171275A MWX 520 FG 1275 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171360A MWX 520 FG 1360 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171445A MWX 520 FG 1445 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171530A MWX 520 FG 1530 mm MWX A PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170085B MWX 520 FG 85 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170170B MWX 520 FG 170 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170255B MWX 520 FG 255 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170340B MWX 520 FG 340 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170425B MWX 520 FG 425 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170510B MWX 520 FG 510 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170595B MWX 520 FG 595 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170680B MWX 520 FG 680 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170765B MWX 520 FG 765 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170850B MWX 520 FG 850 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170935B MWX 520 FG 935 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171020B MWX 520 FG 1020 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171105B MWX 520 FG 1105 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171190B MWX 520 FG 1190 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171275B MWX 520 FG 1275 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171360B MWX 520 FG 1360 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171445B MWX 520 FG 1445 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171530B MWX 520 FG 1530 mm MWX B PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170085C MWX 520 FG 85 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170170C MWX 520 FG 170 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170255C MWX 520 FG 255 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170340C MWX 520 FG 340 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170425C MWX 520 FG 425 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170510C MWX 520 FG 510 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170595C MWX 520 FG 595 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170680C MWX 520 FG 680 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170765C MWX 520 FG 765 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170850C MWX 520 FG 850 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202170935C MWX 520 FG 935 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171020C MWX 520 FG 1020 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171105C MWX 520 FG 1105 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171190C MWX 520 FG 1190 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171275C MWX 520 FG 1275 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171360C MWX 520 FG 1360 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171445C MWX 520 FG 1445 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202171530C MWX 520 FG 1530 mm MWX C PBT white P5202 21500 N/m 7.8 kg/m^2
P5202230085A LFB 520 FG 85 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230170A LFB 520 FG 170 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230255A LFB 520 FG 255 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230340A LFB 520 FG 340 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230425A LFB 520 FG 425 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230510A LFB 520 FG 510 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230595A LFB 520 FG 595 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230680A LFB 520 FG 680 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230765A LFB 520 FG 765 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230850A LFB 520 FG 850 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230935A LFB 520 FG 935 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231020A LFB 520 FG 1020 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231105A LFB 520 FG 1105 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231190A LFB 520 FG 1190 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231275A LFB 520 FG 1275 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231360A LFB 520 FG 1360 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231445A LFB 520 FG 1445 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231530A LFB 520 FG 1530 mm LFB A PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230085B LFB 520 FG 85 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230170B LFB 520 FG 170 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230255B LFB 520 FG 255 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230340B LFB 520 FG 340 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230425B LFB 520 FG 425 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230510B LFB 520 FG 510 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230595B LFB 520 FG 595 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230680B LFB 520 FG 680 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230765B LFB 520 FG 765 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230850B LFB 520 FG 850 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230935B LFB 520 FG 935 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231020B LFB 520 FG 1020 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231105B LFB 520 FG 1105 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231190B LFB 520 FG 1190 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231275B LFB 520 FG 1275 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231360B LFB 520 FG 1360 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231445B LFB 520 FG 1445 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231530B LFB 520 FG 1530 mm LFB B PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230085C LFB 520 FG 85 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230170C LFB 520 FG 170 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230255C LFB 520 FG 255 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230340C LFB 520 FG 340 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230425C LFB 520 FG 425 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230510C LFB 520 FG 510 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230595C LFB 520 FG 595 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230680C LFB 520 FG 680 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230765C LFB 520 FG 765 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230850C LFB 520 FG 850 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202230935C LFB 520 FG 935 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231020C LFB 520 FG 1020 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231105C LFB 520 FG 1105 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231190C LFB 520 FG 1190 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231275C LFB 520 FG 1275 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231360C LFB 520 FG 1360 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231445C LFB 520 FG 1445 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2
P5202231530C LFB 520 FG 1530 mm LFB C PBT white P5202 21500 N/m 7.5 kg/m^2

*Material

Material LFA – Low friction acetal LFB – Low friction acetal MX – Performance PBT MPX – Lubricated acetal DKM – Reinforced acetal PP – Polypropylene MWX – Polyamid Composite
Color Cyan Blue Black Grey Black Grey Black
Temp. range dry: -40÷80 °C -40÷80 °C -40÷120 °C -40÷80 °C -40÷80 °C 4÷104 °C -40÷104 °C
Temp. range wet: -40÷65 °C -40÷65 °C -40÷60 °C -40÷65 °C -40÷65 °C 4÷104 °C NO
FDA approve Yes Yes Yes YES – YES –



View more

Modular belt

Straight





Document

pdf

Movex_MX_ENG

Request a quote




Product

CATEGORY

Product relate

mhptechnique

590 split machined sprocket

mhptechnique

556 machined sprocket

mhptechnique

553 split machined sprocket

mhptechnique

553 one-piece molded sprocket

mhptechnique

552 split machined sprocket

mhptechnique

551 molded sprocket

Viewed products

mhptechnique

552 Flat Top – P5341

mhptechnique

520 Flush Grid

mhptechnique

828 Flat Top

mhp
LINKS
RECEIVE INFORMATION

Contact MHP to receive information

Office & Warehouse
Headquarter
MHP TECHNIQUE CO., LTD 2022 I | All Rights Reserved
