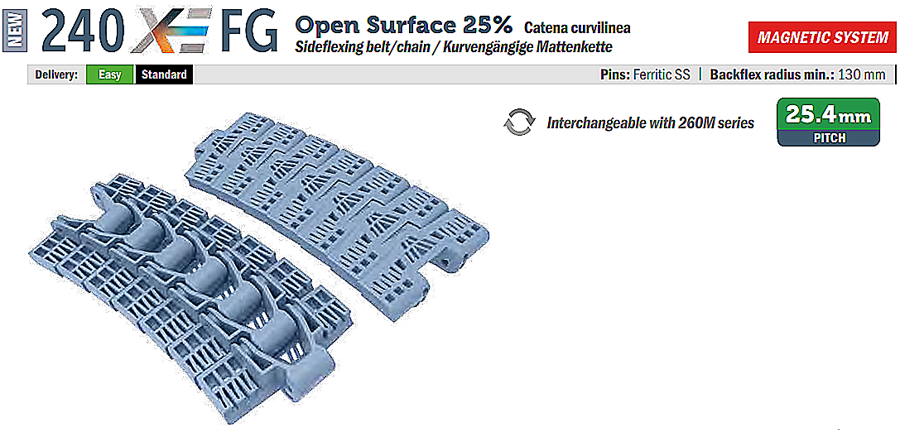

240XE M Flush Grid – P1205
240XE M Flush Grid – P1205
Series: 240XE-260-261
Brand: Movex – Italy
Basic Features
- Pitch: 25.4 mm
- Thickness: 8.7 mm
- Surface Type: FG – Flush Gird
- Functionality: Side Flex MAGNETIC
- Temperature range dry: -40÷120 °C
- Material: LFA, PFX, MX
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Specifications
| Product code | Product name | Material | Rmin | Pin material | Part | Max working load | Mass |
| P12050103 | LFA 240XE M FG K 330 – 83,8 mm | LFA | 500 | Ferritic Stainless Steel | P1205 | 1800 N | 1.02 kg/m |
| P12050303 | MX 240XE M FG K 330 – 83,8 mm | MX | 500 | Ferritic Stainless Steel | P1205 | 1450 N | 0.98 kg/m |
| P12053003 | PFX 240XE M FG K 330 – 83,8 mm | PFX | 500 | Ferritic Stainless Steel | P1205 | 1450 N | 0.98 kg/m |
*Material
| Material | LFA – Low friction acetal | MX – Performance PBT | PFX – Performance PBT |
| Color | Cyan | Black | Orange |
| Temp. range dry: | -40÷80 °C | -40÷120 °C | -40÷120 °C |
| Temp. range wet: | -40÷65 °C | -40÷60 °C | -40÷60 °C |
| FDA approve | Yes | Yes | Yes |
Part of the Movex 240XE-260-261 series
- 260 M Flat Top
- 260 M Flush Grid
- 260 TAB Flat Top
- 261 M Flat Top
- 261 TAB Flat Top
- 240XE M Flat Top
- 240XE TAB Flush Grid
- 240XE TAB Flat Top
