Băng Tải Xích Nhựa 1873 TAB Gripper GS4 – P1183 – P1184 – P1185 – P1186
Băng Tải Xích Nhựa 1873 TAB Gripper GS4 – P1183 – P1184 – P1185 – P1186
Series: 1843-1863-1873-1874-1883
Thông số sản phẩm
Bước : 38.1 mm
Độ dày: 4 mm
Bề mặt: Gripper GS4
Kiểu chạy: Chạy cong
Nhiệt độ hoạt động: -40-104°C
Vật liệu: PP, MWX
yêu cầu báo giá
Liên hệ 0909 840 002 để MHP tư vấn và báo giá cụ thể!
- Giao hàng toàn quốc
- Bảo hành kỹ thuật

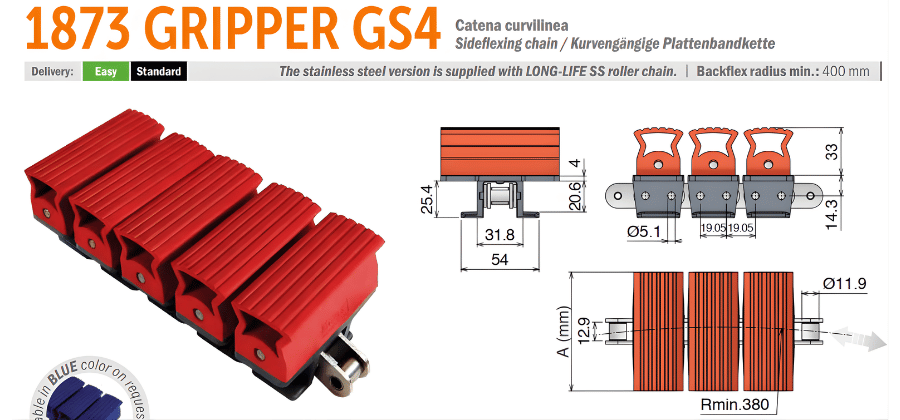

Thông số kỹ thuật:
| Product code | Product name | Material | Rmin | Roller chain material | Part | Max working load | Mass |
| P11830105 | LFD 1873 TAB Gripper GS4 K 325 – 82,5 mm | LFD | 380 | C45 | P1183 | 4500 N | 4.15 kg/m |
| P11830102 | LFD 1873 TAB Gripper GS4 K 450 – 114,3 mm | LFD | 380 | C45 | P1183 | 4500 N | 4.7 kg/m |
| P11830302 | LFD 1873 TAB Gripper GS4 K 325 – 82,5 mm | LFD | 380 | Stainless Steel | P1183 | 3500 N | 4.15 kg/m |
| P11830305 | LFD 1873 TAB Gripper GS4 K 450 – 114,3 mm | LFD | 380 | Stainless Steel | P1183 | 3500 N | 4.7 kg/m |
| P11830202 | LFD 1873 TAB Gripper GS4 K 325 – 82,5 mm | LFD | 380 | Nickel Plated Steel | P1183 | 4500 N | 4.15 kg/m |
| P11830205 | LFD 1873 TAB Gripper GS4 K 450 – 114,3 mm | LFD | 380 | Nickel Plated Steel | P1183 | 4500 N | 4.7 kg/m |
| P11830302M | LFD 1873 TAB Gripper GS4 K 325 – 82,5 mm | LFD | 380 | MUSCLE Stainless Steel | P1183 | 3500 N | 4.15 kg/m |
| P11830305M | LFD 1873 TAB Gripper GS4 K 450 – 114,3 mm | LFD | 380 | MUSCLE Stainless Steel | P1183 | 3500 N | 4.7 kg/m |
| P11840102 | MX 1873 TAB Gripper GS4 K 325 – 82,5 mm | MX | 380 | C45 | P1184 | 4500 N | 4.15 kg/m |
| P11840105 | MX 1873 TAB Gripper GS4 K 450 – 114,3 mm | MX | 380 | C45 | P1184 | 4500 N | 4.7 kg/m |
| P11840302 | MX 1873 TAB Gripper GS4 K 325 – 82,5 mm | MX | 380 | Stainless Steel | P1184 | 3500 N | 4.15 kg/m |
| P11840305 | MX 1873 TAB Gripper GS4 K 450 – 114,3 mm | MX | 380 | Stainless Steel | P1184 | 3500 N | 4.7 kg/m |
| P11840202 | MX 1873 TAB Gripper GS4 K 325 – 82,5 mm | MX | 380 | Nickel Plated Steel | P1184 | 4500 N | 4.15 kg/m |
| P11840205 | MX 1873 TAB Gripper GS4 K 450 – 114,3 mm | MX | 380 | Nickel Plated Steel | P1184 | 4500 N | 4.7 kg/m |
| P11840302M | MX 1873 TAB Gripper GS4 K 325 – 82,5 mm | MX | 380 | MUSCLE Stainless Steel | P1184 | 3500 N | 4.15 kg/m |
| P11840305M | MX 1873 TAB Gripper GS4 K 450 – 114,3 mm | MX | 380 | MUSCLE Stainless Steel | P1184 | 3500 N | 4.7 kg/m |
| P11860102 | MWX 1873 TAB Gripper GS4 K 325 – 82,5 mm | MWX | 380 | C45 | P1186 | 4500 N | 4.15 kg/m |
| P11860105 | MWX 1873 TAB Gripper GS4 K 450 – 114,3 mm | MWX | 380 | C45 | P1186 | 4500 N | 4.7 kg/m |
| P11860302 | MWX 1873 TAB Gripper GS4 K 325 – 82,5 mm | MWX | 380 | Stainless Steel | P1186 | 3500 N | 4.15 kg/m |
| P11860305 | MWX 1873 TAB Gripper GS4 K 450 – 114,3 mm | MWX | 380 | Stainless Steel | P1186 | 3500 N | 4.7 kg/m |
| P11860202 | MWX 1873 TAB Gripper GS4 K 325 – 82,5 mm | MWX | 380 | Nickel Plated Steel | P1186 | 4500 N | 4.15 kg/m |
| P11860205 | MWX 1873 TAB Gripper GS4 K 450 – 114,3 mm | MWX | 380 | Nickel Plated Steel | P1186 | 4500 N | 4.7 kg/m |
| P11860302M | MWX 1873 TAB Gripper GS4 K 325 – 82,5 mm | MWX | 380 | MUSCLE Stainless Steel | P1186 | 3500 N | 4.15 kg/m |
| P11860305M | MWX 1873 TAB Gripper GS4 K 450 – 114,3 mm | MWX | 380 | MUSCLE Stainless Steel | P1186 | 3500 N | s |
| P11850102 | PP 1873 TAB Gripper GS4 K 325 – 82,5 mm | PP | 380 | C45 | P1185 | 4500 N | 4.15 kg/m |
| P11850105 | PP 1873 TAB Gripper GS4 K 450 – 114,3 mm | PP | 380 | C45 | P1185 | 4500 N | 4.7 kg/m |
| P11850302 | PP 1873 TAB Gripper GS4 K 325 – 82,5 mm | PP | 380 | Stainless Steel | P1185 | 3500 N | 4.15 kg/m |
| P11850305 | PP 1873 TAB Gripper GS4 K 450 – 114,3 mm | PP | 380 | Stainless Steel | P1185 | 3500 N | 4.7 kg/m |
| P11850202 | PP 1873 TAB Gripper GS4 K 325 – 82,5 mm | PP | 380 | Nickel Plated Steel | P1185 | 4500 N | 4.15 kg/m |
| P11850205 | PP 1873 TAB Gripper GS4 K 450 – 114,3 mm | PP | 380 | Nickel Plated Steel | P1185 | 4500 N | 4.7 kg/m |
| P11850302M | PP 1873 TAB Gripper GS4 K 325 – 82,5 mm | PP | 380 | MUSCLE Stainless Steel | P1185 | 3500 N | 4.15 kg/m |
| P11850305M | PP 1873 TAB Gripper GS4 K 450 – 114,3 mm | PP | 380 | MUSCLE Stainless Steel | P1185 | 3500 N | 4.7 kg/m |
Thông số vật liệu:
| Material | PP – Polypropylene | MWX – Polyamid Composite |
| Color | Grey | Black |
| Temp. range dry: | 4÷104 °C | -40÷104 °C |
| Temp. range wet: | 4÷104 °C | NO |
| FDA approve | YES | – |
