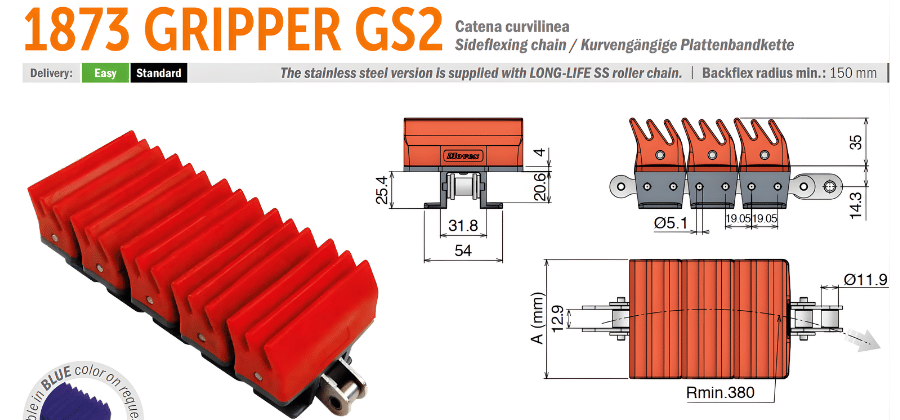

Băng Tải Xích Nhựa 1873 TAB Gripper GS2 – P1128 – P1129 – P1134 – P1135
Băng Tải Xích Nhựa 1873 TAB Gripper GS2 – P1128 – P1129 – P1134 – P1135
Series: 1843-1863-1873-1874-1883
Thông số sản phẩm
Bước : 38.1 mm
Độ dày: 4 mm
Bề mặt: Gripper GS2
Kiểu chạy: Chạy cong
Nhiệt độ hoạt động: -40-120°C
Vật liệu: LFD, MX, PP, MWX
yêu cầu báo giá
Liên hệ 0909 840 002 để MHP tư vấn và báo giá cụ thể!
- Giao hàng toàn quốc
- Bảo hành kỹ thuật
Thông số kỹ thuật:
| Product code | Product name | Material | Rmin | Roller chain material | Part | Max working load | Mass |
| P11280105 | LFD 1873 TAB Gripper GS2 K 325 – 82,5 mm | LFD | 380 | C45 | P1128 | 4500 N | 4.354 kg/m |
| P11280102 | LFD 1873 TAB Gripper GS2 K 450 – 114,3 mm | LFD | 380 | C45 | P1128 | 4500 N | 4.945 kg/m |
| P11280302 | LFD 1873 TAB Gripper GS2 K 325 – 82,5 mm | LFD | 380 | Stainless Steel | P1128 | 3500 N | 4.354 kg/m |
| P11280305 | LFD 1873 TAB Gripper GS2 K 450 – 114,3 mm | LFD | 380 | Stainless Steel | P1128 | 3500 N | 4.945 kg/m |
| P11280202 | LFD 1873 TAB Gripper GS2 K 325 – 82,5 mm | LFD | 380 | Nickel Plated Steel | P1128 | 4500 N | 4.354 kg/m |
| P11280205 | LFD 1873 TAB Gripper GS2 K 450 – 114,3 mm | LFD | 380 | Nickel Plated Steel | P1128 | 4500 N | 4.945 kg/m |
| P11280302M | LFD 1873 TAB Gripper GS2 K 325 – 82,5 mm | LFD | 380 | MUSCLE Stainless Steel | P1128 | 3500 N | 4.354 kg/m |
| P11280305M | LFD 1873 TAB Gripper GS2 K 450 – 114,3 mm | LFD | 380 | MUSCLE Stainless Steel | P1128 | 3500 N | 4.945 kg/m |
| P11340102 | MX 1873 TAB Gripper GS2 K 325 – 82,5 mm | MX | 380 | C45 | P1134 | 4500 N | 4.354 kg/m |
| P11340105 | MX 1873 TAB Gripper GS2 K 450 – 114,3 mm | MX | 380 | C45 | P1134 | 4500 N | 4.945 kg/m |
| P11340302 | MX 1873 TAB Gripper GS2 K 325 – 82,5 mm | MX | 380 | Stainless Steel | P1134 | 3500 N | 4.354 kg/m |
| P11340305 | MX 1873 TAB Gripper GS2 K 450 – 114,3 mm | MX | 380 | Stainless Steel | P1134 | 3500 N | 4.945 kg/m |
| P11340202 | MX 1873 TAB Gripper GS2 K 325 – 82,5 mm | MX | 380 | Nickel Plated Steel | P1134 | 4500 N | 4.354 kg/m |
| P11340205 | MX 1873 TAB Gripper GS2 K 450 – 114,3 mm | MX | 380 | Nickel Plated Steel | P1134 | 4500 N | 4.945 kg/m |
| P11340302M | MX 1873 TAB Gripper GS2 K 325 – 82,5 mm | MX | 380 | MUSCLE Stainless Steel | P1134 | 3500 N | 4.354 kg/m |
| P11340305M | MX 1873 TAB Gripper GS2 K 450 – 114,3 mm | MX | 380 | MUSCLE Stainless Steel | P1134 | 3500 N | 4.945 kg/m |
| P11350102 | MWX 1873 TAB Gripper GS2 K 325 – 82,5 mm | MWX | 380 | C45 | P1135 | 4500 N | 4.354 kg/m |
| P11350105 | MWX 1873 TAB Gripper GS2 K 450 – 114,3 mm | MWX | 380 | C45 | P1135 | 4500 N | 4.945 kg/m |
| P11350302 | MWX 1873 TAB Gripper GS2 K 325 – 82,5 mm | MWX | 380 | Stainless Steel | P1135 | 3500 N | 4.354 kg/m |
| P11350305 | MWX 1873 TAB Gripper GS2 K 450 – 114,3 mm | MWX | 380 | Stainless Steel | P1135 | 3500 N | 4.945 kg/m |
| P11350202 | MWX 1873 TAB Gripper GS2 K 325 – 82,5 mm | MWX | 380 | Nickel Plated Steel | P1135 | 4500 N | 4.354 kg/m |
| P11350205 | MWX 1873 TAB Gripper GS2 K 450 – 114,3 mm | MWX | 380 | Nickel Plated Steel | P1135 | 4500 N | 4.945 kg/m |
| P11350302M | MWX 1873 TAB Gripper GS2 K 325 – 82,5 mm | MWX | 380 | MUSCLE Stainless Steel | P1135 | 3500 N | 4.354 kg/m |
| P11350305M | MWX 1873 TAB Gripper GS2 K 450 – 114,3 mm | MWX | 380 | MUSCLE Stainless Steel | P1135 | 3500 N | 4.945 kg/m |
| P11290102 | PP 1873 TAB Gripper GS2 K 325 – 82,5 mm | PP | 380 | C45 | P1129 | 4500 N | 4.354 kg/m |
| P11290105 | PP 1873 TAB Gripper GS2 K 450 – 114,3 mm | PP | 380 | C45 | P1129 | 4500 N | 4.945 kg/m |
| P11290302 | PP 1873 TAB Gripper GS2 K 325 – 82,5 mm | PP | 380 | Stainless Steel | P1129 | 3500 N | 4.354 kg/m |
| P11290305 | PP 1873 TAB Gripper GS2 K 450 – 114,3 mm | PP | 380 | Stainless Steel | P1129 | 3500 N | 4.945 kg/m |
| P11290202 | PP 1873 TAB Gripper GS2 K 325 – 82,5 mm | PP | 380 | Nickel Plated Steel | P1129 | 4500 N | 4.354 kg/m |
| P11290205 | PP 1873 TAB Gripper GS2 K 450 – 114,3 mm | PP | 380 | Nickel Plated Steel | P1129 | 4500 N | 4.945 kg/m |
| P11290302M | PP 1873 TAB Gripper GS2 K 325 – 82,5 mm | PP | 380 | MUSCLE Stainless Steel | P1129 | 3500 N | 4.354 kg/m |
| P11290305M | PP 1873 TAB Gripper GS2 K 450 – 114,3 mm | PP | 380 | MUSCLE Stainless Steel | P1129 | 3500 N | 4.945 kg/m |
Thông số vật liệu:
| Material | PP – Polypropylene | MWX – Polyamid Composite | LFD – Low friction acetal | MX – Performance PBT |
| Color | Grey | Black | Black | |
| Temp. range dry: | 4÷104 °C | -40÷104 °C | -40÷80 °C | -40÷120 °C |
| Temp. range wet: | 4÷104 °C | NO | -40÷65 °C | -40÷60 °C |
| FDA approve | YES | – | Yes | Yes |
