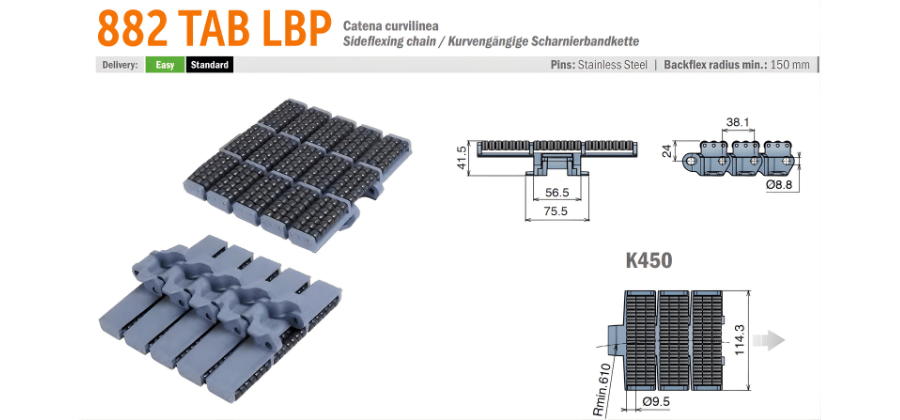

882 TAB Low Back Pressure
882 TAB Low Back Pressure
Series: 821-882-8257
Basic Features
Pitch : 38.1 mm
Thickness: 4.8 mm
Surface Type: LBP – Low Back Pressure
Functionality: Side Flex TAB
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Technical Specifications:
| Product code | Product name | Material | Rmin | Pin material | Part | Max working load | Mass |
| P11180105 | LFA 882 TAB LBP K 450 – 114,3 mm | LFA | 610 | Stainless steel | P1118 | 3830 N | 4 kg/m |
| P11180107 | LFA 882 TAB LBP K 750 – 190,5 mm | LFA | 610 | Stainless steel | P1118 | 3830 N | 4.7 kg/m |
| P11180108 | LFA 882 TAB LBP K1000 – 254,0 mm | LFA | 610 | Stainless steel | P1118 | 3830 N | 5.95 kg/m |
| P11180109 | LFA 882 TAB LBP K1200 – 304,8 mm | LFA | 610 | Stainless steel | P1118 | 3830 N | 6.55 kg/m |
Material Specifications:
| Material | LFA – Low friction acetal |
| Color | Cyan |
| Temp. range dry: | -40÷80 °C |
| Temp. range wet: | -40÷65 °C |
| FDA approve | Yes |
Profile MHP
Document
