880 M Flat Top

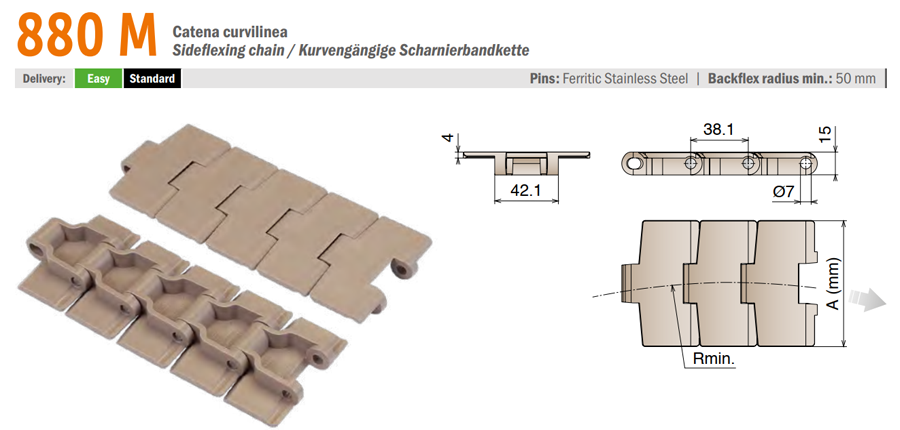

Thông số 880 M FT Movex

Thông số 880 M FT Movex

880 M Flat Top

Series: 820-828-831-878-879-880-888

Basic Features

Pitch : 38.1 mm

Thickness: 4 mm

Surface Type: FT – Flat Top

Functionality: Side Flex MAGNETIC

Request a quote

Contact MHP at 0909 840 002 for consultation and quotation!

Nationwide Delivery
Technical Waranty

Technical Specifications:

Product code	Product name	Material	Rmin	Pin material	Part	Max working load	Mass
P11100102	LF 880M FT K 325 – 82,5 mm	LF	457	Ferritic Stainless Steel	P1110	2200 N	1.05 kg/m
P11100103	LF 880M FT K 325 – 82,5 mm	LF	457	Ferritic Stainless Steel	P1110	2200 N	1.09 kg/m
P11100105	LF 880M FT K 450 – 114,3 mm	LF	457	Ferritic Stainless Steel	P1110	2200 N	1.15 kg/m
P11100302	MX 880M FT K 325 – 82,5 mm	MX	457	Ferritic Stainless Steel	P1110	1750 N	1.05 kg/m
P11100303	MX 880M FT K 325 – 82,5 mm	MX	457	Ferritic Stainless Steel	P1110	1750 N	1.09 kg/m
P11100305	MX 880M FT K 450 – 114,3 mm	MX	457	Ferritic Stainless Steel	P1110	1750 N	1.15 kg/m
P11103002	PFX 880M FT K 325 – 82,5 mm	PFX	457	Ferritic Stainless Steel	P1110	1750 N	1.05 kg/m
P11103003	PFX 880M FT K 325 – 82,5 mm	PFX	457	Ferritic Stainless Steel	P1110	1750 N	1.09 kg/m
P11103005	PFX 880M FT K 450 – 114,3 mm	PFX	457	Ferritic Stainless Steel	P1110	1750 N	1.15 kg/m
P11101702	MWX 880M FT K 325 – 82,5 mm	MWX	457	Ferritic Stainless Steel	P1110	2200 N	1.05 kg/m
P11101703	MWX 880M FT K 325 – 82,5 mm	MWX	457	Ferritic Stainless Steel	P1110	2200 N	1.09 kg/m
P11101705	MWX 880M FT K 450 – 114,3 mm	MWX	457	Ferritic Stainless Steel	P1110	2200 N	1.15 kg/m
P11102502	MPX 880M FT K 325 – 82,5 mm	MPX	457	Ferritic Stainless Steel	P1110	2200 N	1.05 kg/m
P11102503	MPX 880M FT K 325 – 82,5 mm	MPX	457	Ferritic Stainless Steel	P1110	2200 N	1.09 kg/m
P11102505	MPX 880M FT K 450 – 114,3 mm	MPX	457	Ferritic Stainless Steel	P1110	2200 N	1.15 kg/m

Material Specifications:

Material	LFA – Low friction acetal	MX – Performance PBT	MPX – Lubricated acetal	PFX – Performance PBT	MWX – Polyamid Composite
Color	Cyan	Black	Grey	Orange	Black
Temp. range dry:	-40÷80 °C	-40÷120 °C	-40÷80 °C	-40÷120 °C	-40÷104 °C
Temp. range wet:	-40÷65 °C	-40÷60 °C	-40÷65 °C	-40÷60 °C	NO
FDA approve	Yes	Yes	YES	Yes	–
