521 Flat Top

Series: 521

Brand: Movex – Italy

Basic Features

  • Pitch: 12.7mm
  • Thickness: 8.7mm
  • Surface Type: FT – Flat Top
  • Functionality: Straight
  • Temperature range dry: -40÷120 °C
  • Material: LFA, MX, MPX, PFX, DKM, MWX
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
  • Nationwide Delivery
  • Technical Waranty

Specification

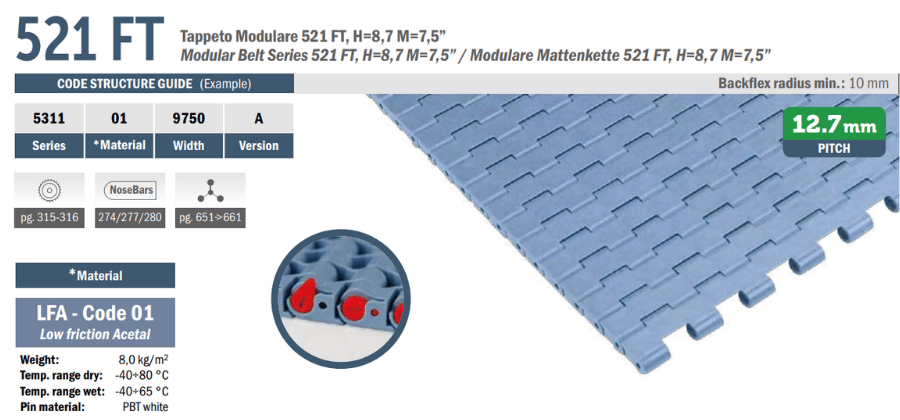

Thông số băng tải nhựa 521 Flat Top Movex
521 Flat Top Movex
Product code Product name Material Version Pin material Part Max working load Mass
P5311010006A LFA 521 FT W152,4mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010009A LFA 521 FT W228,6mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010012A LFA 521 FT W304,8mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010015A LFA 521 FT W381mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010018A LFA 521 FT W457,2mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010021A LFA 521 FT W533,4mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010024A LFA 521 FT W609,6mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010027A LFA 521 FT W685,8mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010030A LFA 521 FT W762mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010033A LFA 521 FT W838,2mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010036A LFA 521 FT W914,4mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010039A LFA 521 FT W990,6mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010042A LFA 521 FT W1066,8mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010045A LFA 521 FT W1143mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010048A LFA 521 FT W1219,2mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010051A LFA 521 FT W1295,4mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311010054A LFA 521 FT W1371,6mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311030003A MX 517 XM G76,2mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030006A MX 517 XM G152,4mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030009A MX 517 XM G228,6mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030012A MX 517 XM G304,8mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030015A MX 517 XM G381mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030018A MX 517 XM G457,2mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030021A MX 517 XM G533,4mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030024A MX 517 XM G609,6mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030027A MX 517 XM G685,8mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030030A MX 517 XM G762mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030033A MX 517 XM G838,2mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030036A MX 517 XM G914,4mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030039A MX 517 XM G990,6mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030042A MX 517 XM G1066,8mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030045A MX 517 XM G1143mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030048A MX 517 XM G1219,2mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030051A MX 517 XM G1295,4mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311030054A MX 517 XM G1371,6mm MX A – No positioners POM Grey P5311 17500 N/m 7.8 kg/m^2
P5311160003A DKM 521 KT W76,2mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160006A DKM 521 KT W152,4mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160009A DKM 521 KT W228,6mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160012A DKM 521 KT W304,8mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160015A DKM 521 KT W381mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160018A DKM 521 KT W457,2mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160021A DKM 521 KT W533,4mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160024A DKM 521 KT W609,6mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160027A DKM 521 KT W685,8mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160030A DKM 521 KT W762mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160033A DKM 521 KT W838,2mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160036A DKM 521 KT W914,4mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160039A DKM 521 KT W990,6mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160042A DKM 521 KT W1066,8mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160045A DKM 521 KT W1143mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160048A DKM 521 KT W1219,2mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160051A DKM 521 KT W1295,4mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311160054A DKM 521 KT W1371,6mm DKM A – No positioners PBT White P5311 21500 N/m 8 kg/m^2
P5311170003A MWX 521 WT W76,2mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170006A MWX 521 WT W152,4mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170009A MWX 521 WT W228,6mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170012A MWX 521 WT W304,8mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170015A MWX 521 WT W381mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170018A MWX 521 WT W457,2mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170021A MWX 521 WT W533,4mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170024A MWX 521 WT W609,6mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170027A MWX 521 WT W685,8mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170030A MWX 521 WT W762mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170033A MWX 521 WT W838,2mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170036A MWX 521 WT W914,4mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170039A MWX 521 WT W990,6mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170042A MWX 521 WT W1066,8mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170045A MWX 521 WT W1143mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170048A MWX 521 WT W1219,2mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170051A MWX 521 WT W1295,4mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311170054A MWX 521 WT W1371,6mm MWX A – No positioners PBT White P5311 21500 N/m 8.3 kg/m^2
P5311250003A MPX 521 PT W76,2mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250006A MPX 521 PT W152,4mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250009A MPX 521 PT W228,6mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250012A MPX 521 PT W304,8mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250015A MPX 521 PT W381mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250018A MPX 521 PT W457,2mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250021A MPX 521 PT W533,4mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250024A MPX 521 PT W609,6mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250027A MPX 521 PT W685,8mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250030A MPX 521 PT W762mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250033A MPX 521 PT W838,2mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250036A MPX 521 PT W914,4mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250039A MPX 521 PT W990,6mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250042A MPX 521 PT W1066,8mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250045A MPX 521 PT W1143mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250048A MPX 521 PT W1219,2mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250051A MPX 521 PT W1295,4mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311250054A MPX 521 PT W1371,6mm MPX A – No positioners PBT White P5311 21500 N/m 8.9 kg/m^2
P5311300003A PFX 517 FT W76,2mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300006A PFX 517 FT W152,4mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300009A PFX 517 FT W228,6mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300012A PFX 517 FT W304,8mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300015A PFX 517 FT W381mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300018A PFX 517 FT W457,2mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300021A PFX 517 FT W533,4mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300024A PFX 517 FT W609,6mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300027A PFX 517 FT W685,8mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300030A PFX 517 FT W762mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300033A PFX 517 FT W838,2mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300036A PFX 517 FT W914,4mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300039A PFX 517 FT W990,6mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300042A PFX 517 FT W1066,8mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300045A PFX 517 FT W1143mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300048A PFX 517 FT W1219,2mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300051A PFX 517 FT W1295,4mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311300054A PFX 517 FT W1371,6mm PFX A – No positioners PBT White P5311 17500 N/m 7.8 kg/m^2
P5311010003A LFA 521 FT W76,2mm LFA A – No positioners PBT White P5311 21500 N/m 8 kg/m^2

*Marterial

Material LFA – Low friction acetal MX – Performance PBT PFX – Performance PBT MPX – Lubricated acetal DKM – Reinforced acetal MWX – Polyamid Composite
Color Cyan Black Orange Grey Black Black
Temp. range dry -40÷80 °C -40÷120 °C -40÷120 °C -40÷80 °C -40÷80 °C -40÷104 °C
Temp. range wet -40÷65 °C -40÷60 °C -40÷60 °C -40÷65 °C -40÷65 °C NO
FDA approve Yes Yes Yes YES – –



View more

Modular belt

Straight



Document

pdf

Movex_PFX_Not_Just_a_Color_ENG
