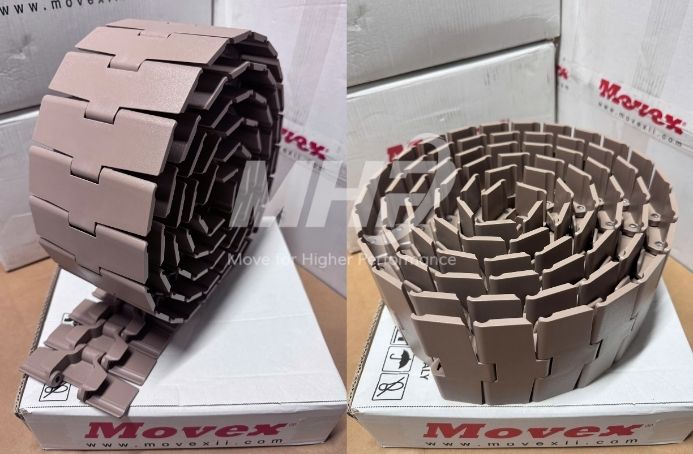

Movex LF 879 TAB K 450 – P11250105
Movex LF 879 TAB K 450 – P11250105
Series: 879 TAB Flat Top
Brand: Movex – Italy
Basic Features
- Pitch: 38.1mm
- Thickness:: 4.8mm
- Width: K 450 – 114,3 mm
- Surface Type: FT – Flat Top
- Functionality: Side Flex TAB
- Box: 10 FT – 3.048m/box
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Technical features
| Product name | Movex LF 879 TAB K 450 |
| Series | 879 Flat Top |
| Bước xích (Pitch) | 38.1 mm |
| Thickness | 4.8 mm |
| Surface Type | FT – Flat Top |
| Functionality | Side Flex TAB |
| Unit of measure | Meter |
| Width | K 450 – 114,3 mm |
| Material | LF – Low Friction Acetal – 01 |
| Part | P11250105 |
| Back flex radius | 50 mm |
| Pin material | Stainless steel |
| Box | 10 ft – 3.048 m |
| Max working load | 2200 N |
