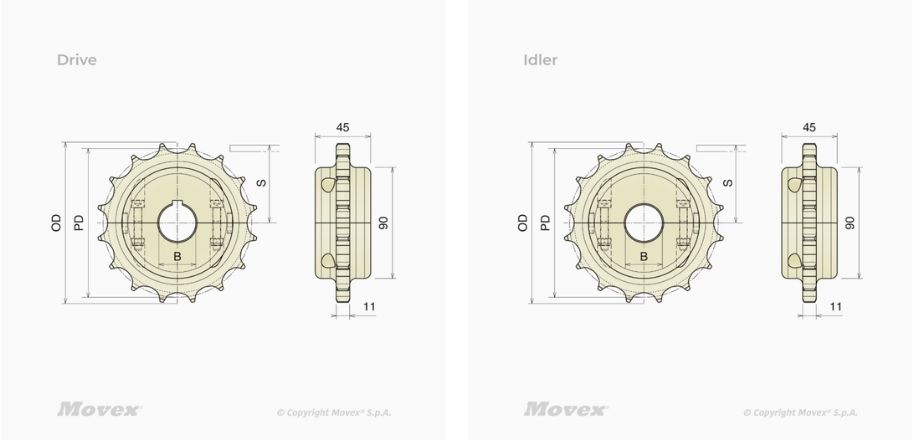

MACHINED SPLIT-IDLER SERIES 260M/261M Z19 DF-25 – P154351
MACHINED SPLIT-IDLER SERIES 260M/261M Z19 DF-25 – P154351
Series: 260-261 split machined sprocket
Brand: Movex – Italy
Basic Features
- Pitch: 25.4mm
- Z- : 19
- Version: Idler
- Execution: Machined
- Material: PA – Polyamide composite
- Temperature range dry: -40÷80 °C
- Box: 4 Ea/Box
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty
Technical features
| Product name | Movex 260M/261M z-19 df-25 |
| Series | 260-261 split machined sprocket |
| Pitch | 25.4 mm |
| Z- | 19 |
| Version | Idler |
| Type | Split |
| Execution | Machined |
| Pitch diameter | 154.3 mm |
| Outer diameter | 156.3 mm |
| Part | P154351 |
| Material | PA – Polyamide composite |
| Temperature range dry | -40÷80 °C |
| Box | 4 EA/Box |
